| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO9001 / IATF16949 / ISO13485 |
| Model Number: | OEM Electronic Pcb / Pcba Assembly |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1-30 |
| Packaging Details: | Anti-static bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 |
| Max Size Of Finish Board: | 700*460mm | Layer: | 1-48 |
|---|---|---|---|
| Material: | FR4, High TG FR4, High Frequency, Alum, FPC | Surface Finish: | HASL,ENIG,immersion Silver,immersion Tin,OSP… |
| Board Thickness: | Single/Double:0.008±0.004” | PCB Outline: | Square,circle,irregular(with Jigs) |
| High Light: | HASL Printed Circuit Board Assemblies,HASL Bluetooth Circuit Board Assemblies,HASL PCB Assemblies |
||

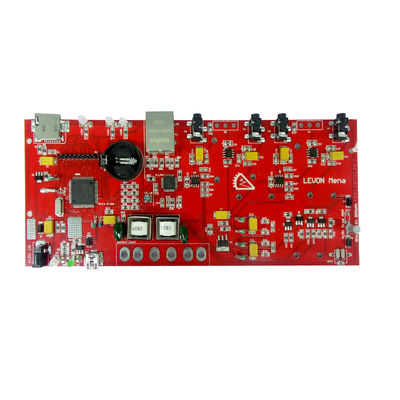

OEM Bluetooth HASL Printed Circuit Board Assemblies
* PCB or PCB Assembly files requests
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly(To short the lead time, please kindly advise us if there is any acceptable components substitution. )
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
(Components for your PCBA project can be supplied in any one or more approaches above.
We order genuine parts from your designated suppliers or our partner companies including DigiKey, Mouser, Arrow, Avnet, Future Electronics, Farnell.etc)
PCBA Description:
|
Capability - SMT |
||||
|
Lines |
9 (5 Yamaha, 4 KME) |
|||
|
Capacity |
52 million placements per month |
|||
|
Max Board Size |
457 X 356mm. (18” x 14”) |
|||
|
Min Component size |
0201 – 54 sq. mm. (0.084 sq. inch), long connector, CSP, BGA, QFP |
|||
|
Speed |
0.15 sec/chip, 0.7 sec/QFP |
|||
|
Capability - PTH |
||||
|
Insertion Type |
# of Lines |
Capacity (points/mth) |
Max Board Size |
Lead Pitch |
|
Jumper Wire |
3 |
6 million |
330X250 mm (13” x 9.8) |
5-30 mm |
|
Axial |
3 |
6 million |
457x559 mm (18” x 22”) |
5-20 mm |
|
Radial |
3 |
9 million |
457x559 mm (18” x 22”) |
0.36-21.5 mm |
|
Wave Soldering |
||||
|
Wave Soldering |
2 |
|||
|
Max board width |
400 mm |
|||
|
Type |
Dual wave |
|||
|
Pbs Status |
Lead-free line support |
|||
|
Max temp |
399 degree C |
|||
|
Spray flux |
add-on |
|||
|
Pre-heat zones |
3 |
|||
