| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | PCBA Electronics Assembly |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1-20 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Number Of Layers: | 1-48 | PCBA Testing: | X-ray,AOI Test,Functional Test |
|---|---|---|---|
| Max Size Of Finish Board: | 700*460mm | PCB Outline: | Square,circle,irregular(with Jigs) |
| Min Space: | 0.075mm | Min Line: | 0.075mm |

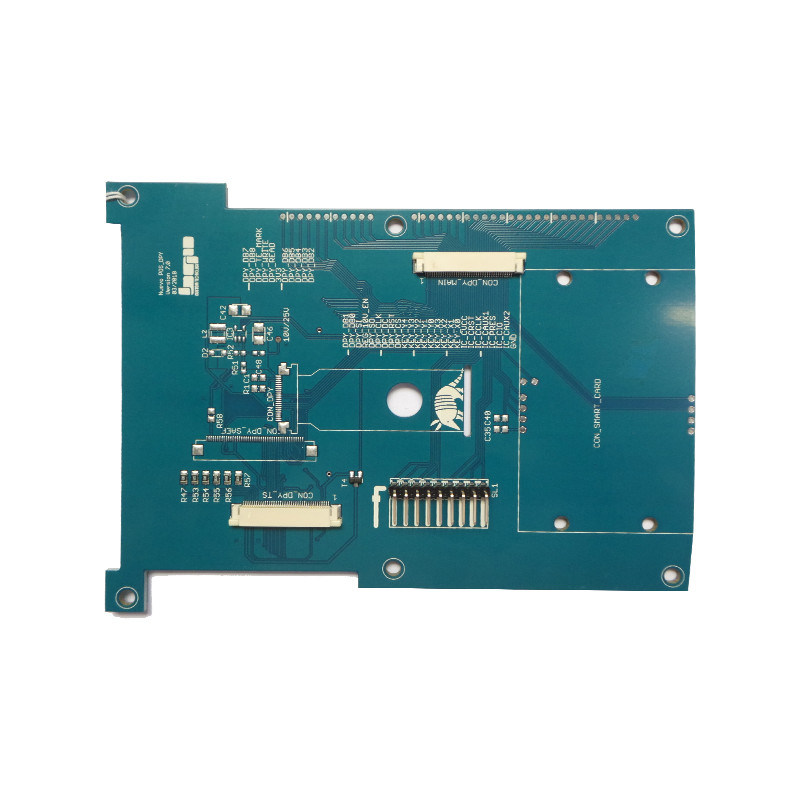

| High Light: | Medical PCBA Electronics,48 Layers Printed Circuit Board Assembly |
||
Product parameters:
| Description | Capability |
| Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) |
| Standard | (0.1-4mm±10%) |
| Board Thickness | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” | |
| 8layer:0.01±0.008” | |
| Bow and twist | no more than 7/1000 |
| Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Solder Mask Thickness | (0.012*0.017mm) |
| Silkscreen Color | white,black,yellow,blue… |
| Silkscreen Min size | 0.006″(0.15mm) |
| Max Size of Finish Board | 700*460mm |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
| Layer | Prototype |
Mass Productions (above 30 m2 ) |
|
| Quick Turn | Unual Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
Delivery Time for PCBA
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
Welcome to our factory
JINGBANG has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
FASTPCBA has focus on full feature pcb manufacturing and assembly service over 20 years,service business include: automotive pcba, medical pcba, industrial pcba, smart home pcba, communication pcba, military pcba, aerospace pcba etc.
