| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | One-Stop PCB Assembly |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Number Of Layers: | 1-48 | Material: | FR4, High TG FR4, High Frequency, Alum, FPC |
|---|---|---|---|
| Min Line: | 0.075mm | PCBA Testing: | X-ray,AOI Test,Functional Test |
| Max Size Of Finish Board: | 700*460mm | Package: | QFN,BGA,SSOP,PLCC,LGA |

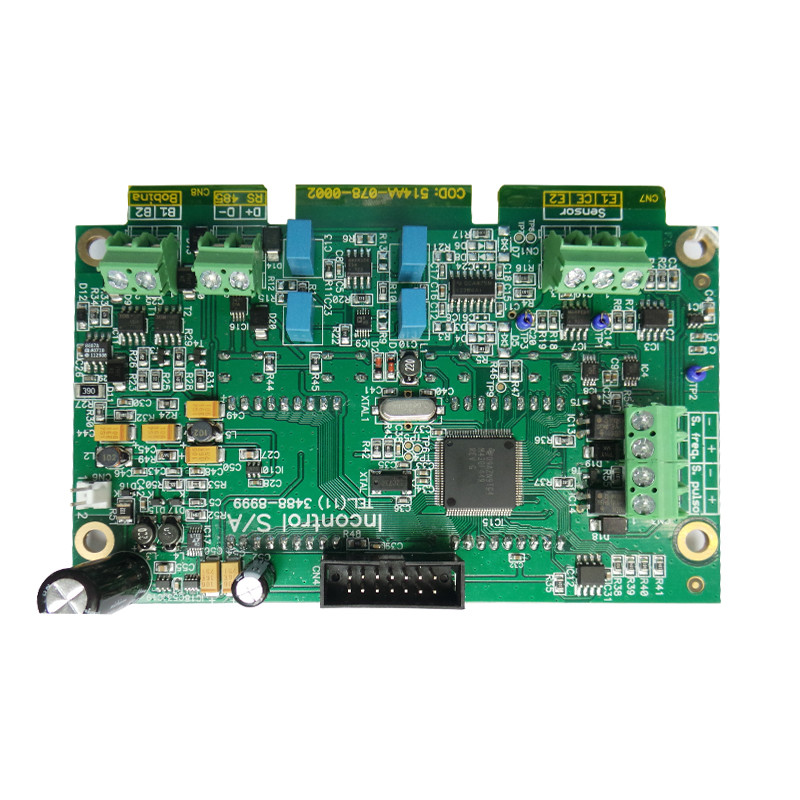

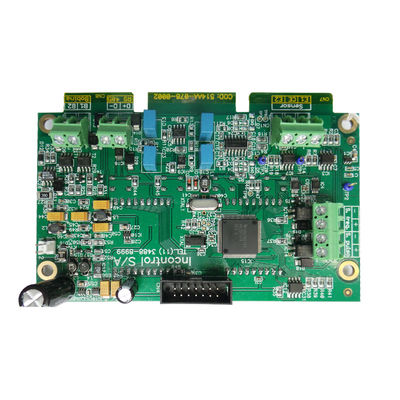

| High Light: | Turn key PCBA Service,SMT Rigid Flexible PCB |
||
PCB Capability
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
5000㎡+ SMT pcba factory in shenzhen china, service scopes from quick pcb prototype to mass pcb manufacturing for customers of automotive pcba,aerospace pcba, communication pcba, medical pcba, industrial pcba, smart home pcba and military pcba etc.
FASTPCBA is the professional pcb factory over 20 years, who has been audited by gemany bosch. With ISO & IATF certificate, 5000㎡+ dust free and ESD protection smt workshop, FASTPCBA gets the favor of customers among industrial control, automotive, medical, smart home, power communication, military & aerospace.
FASTPCBA is famous for precise and accutate pcb manufacturing and assembly capacibility among pcba industry with 70000 points/ h placement speed, can mount 0201 & 01005 devices, identify 0.25 pitch BGA and 0.2MM connectors, we can better satisfy high density, fine pith pcb assembly requirements.
FASTPCBA is the best one-stop pcba assembly supplier in china, it’s our continuous pursuit to better serve and creat more values for customers domestic and abroad.
