| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | One-Stop PCB Assembly |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Number Of Layers: | 1-48 | Material: | FR4, High TG FR4, High Frequency, Alum, FPC |
|---|---|---|---|
| Min Space: | 0.075mm | Function Test: | 100% Functional Test |
| PCBA Testing: | X-ray,AOI Test,Functional Test | PCB Outline: | Square,circle,irregular(with Jigs) |

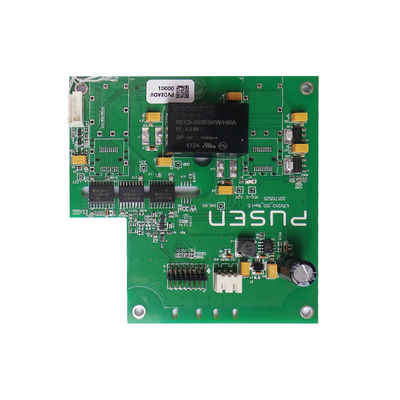

| High Light: | Door Lock SMT PCBA,Electronic SMT PCBA |
||
PCB Assembly Capability
| Order Quantity | 1-50,000pcs (including prototype) |
| Components | SMD and THT,From size 0402.0201 to 01005, SOIC,PLCC, TSOP, QFP,BGA |
| Assembly Method | Single and double-sided / SMD and THT / SMT and Thru-hole |
| Ball Grid Array (BGA) | As small as 0.5mm pitch,All BGA placements are inspected by X-Ray |
| Components Package | Poles,Reels, Tape Strips, Bulk Supply |
| Maximum Componentsize | 55*55*15,Fine Pitch from 0.4mm,Minimum Pin width 0.2mm |
| Solder | Lead free and conforming to DIN 32513,ISO, EN29454,IPC 650 |
| Related Test | AOI & X-Ray Inspection, Flying Probe Test and In Circuit Test |
| File Format | BOM & Gerber files |
PCB Fabrication Capability
| Product Name | Printed Circuit Board |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Base Material | FR4, High TG FR4, CEM1,CEM3,Aluminum, Rogers, Taconic |
| Layer Counts | 1-30L |
| Max Board Size | 1200*400mm |
| Board Thickness | 0.2-7mm |
| Min Hole Size (mechanical) | 0.15mm |
| Min Hole Size (laser) | 0.10mm |
| Controlled Tolerance | +/-5% |
| Copper Weight | 0.5-4oz |
| Outline Profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Surface Finish | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP |
FASTPCBA is the professional pcb factory over 20 years, who has been audited by gemany bosch. With ISO & IATF certificate, 5000㎡+ dust free and ESD protection smt workshop, FASTPCBA gets the favor of customers among automotive, medical, industrial control, smart home, power communication, military & aerospace.
FASTPCBA is famous for precise and accutate pcb manufacturing and assembly capacibility among pcba industry with 70000 points/ h placement speed, can mount 0201 & 01005 devices, identify 0.25 pitch BGA and 0.2MM connectors, we can better satisfy high density, fine pith pcb assembly requirements.
FASTPCBA is the best one-stop pcba assembly supplier in china, it’s our continuous pursuit to better serve and creat more values for customers domestic and abroad.
