| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO13485, IATF16949, ISO9001 |
| Model Number: | OEM |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD 0.1-3/ pcs |
| Packaging Details: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Service: | One-stop Service | Layer Count: | 1-48 |
|---|---|---|---|
| Testing Service: | Function Test, 100% Test | MOQ: | No MOQ |
| PCBA Test: | X-ray,AOI Test,Functional Test | Solder Mask Color: | Yellow,green,blue |
| High Light: | Automotive 48 Layers PCB Assembly Service,Automotive PCB Assembly Service,48 Layers 0.07mm PCB Assembly service |
||

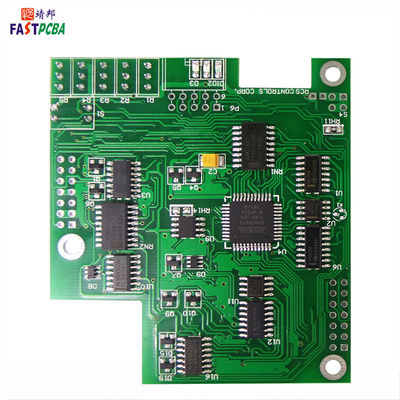

China Quality Pcb Automotive printed Circuit Board OEM Manufacturer Pcba Assembly In Shenzhen
.
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
Delivery Time for PCB
| Layer | Prototype |
Mass Productions (above 30 m2 ) |
|
| Quick Turn | Unual Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
Delivery Time for PCBA
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
FASTPCBA is the high tech pcba factory in shenzhen china over 20 years, our pcba service feature: middle and small batch quick pcb prototype, turnkey pcb assembly, high quality custom pcba manufacturing, original package components procurements etc.
With complete dust free & esd protection smt workshop, FASTPCBA has win trust and support from domestic and abroad customers of industrial control, medical,power communication, automotive etc. All pcba products here abide by IATF16949 & ISO14000 & ISO13485 & ISO9001 certificates, reliable and stable pcb manufacturing and assembly service are assured.
FASTPCBA believes quality derives from profession, reputation wins the future. From grass-roots employees to senior management all concentrate on precise and high quality pcba solutions to provide better service for customers.
