| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | One-Stop PCBA Manufacturers |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Number Of Layers: | 1-48 | Material: | FR4, High TG FR4, High Frequency, Alum, FPC |
|---|---|---|---|
| Min Space: | 0.075mm | Sub-assembly: | Plastic,metal,screen |
| PCB Outline: | Square,circle,irregular(with Jigs) | Max Size Of Finish Board: | 700*460mm |

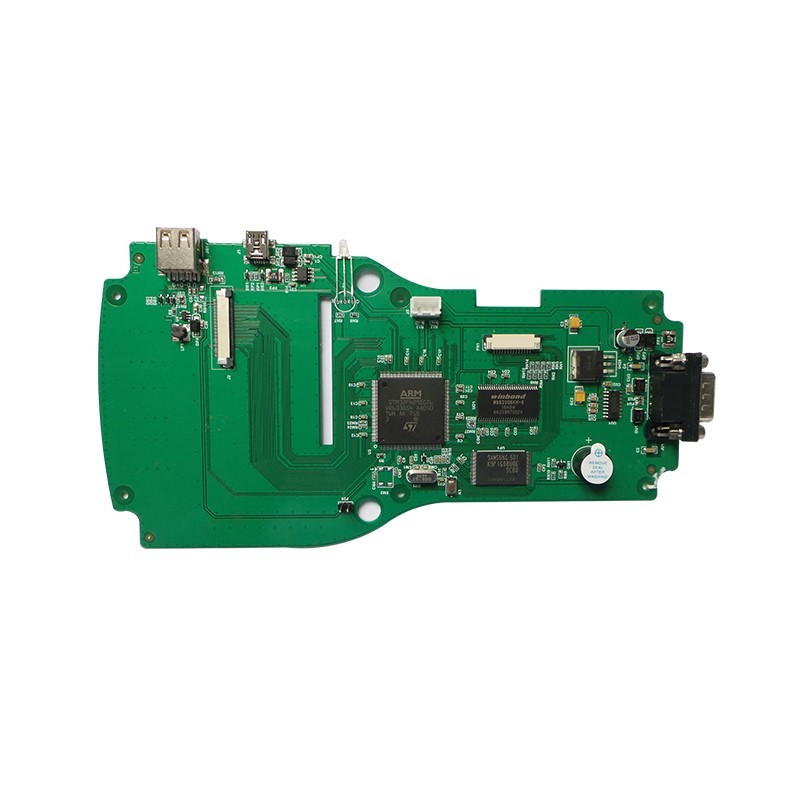

| High Light: | FR4 Flexible PCBs,Surface Mount Flexible PCBs |
||
WHY CHOOSE JINGBANG?
1. 4 hours for pcba prototype, no MOQ (MOQ can be 1pcs,30 models PCB prototype per day, 3 million points per day.
2. Mature ISO9001 quality management system,IATF16949:2016 international automotive quality system standard and ISO13485:2016 medical device quality management system.
3. High-precision production machine, 5000 square meters dust-free anti-static workshop, strict workshop temperature and humidity monitoring.
4. 20 years of pcb & pcba manufacturing production and export experience, Famous brand manufacturers in China.
5. ERP order management system, one-click extraction of historical data , component inventory management is more convenient.
6. Free 24 hour online service among worldwide, problems feedback are no longer delayed.
7. Professional engineering team with an average of 15 years of industry experience.
8. NDA. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Process capability:
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||
| Material | Laminate materials | FR4, , high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | ||
| Board thickness | Standard | (0.1-4mm±10%) | |
| Min. | Single/Double:0.008±0.004” | ||
| 4layer:0.01±0.008” | |||
| 8layer:0.01±0.008” | |||
| Bow and twist | no more than 7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949, ISO13485, ISO9001 | ||
| Delivery time: | PCB | 3-8days | |
| PCBA | 10-20days | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 700*460mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||
FASTPCBA can be called a “revised type pcba assembly factory”, who can provided free value added pcba files modification service and turn your pcb design to the most highest quality pcb fabrication and assembly products, as we have engineer teams average pcba industry experience over 20 years to optimize the customer's pcb design but keep the use function at the same time.
FASTPCBA continuously imported advanced pcb machine from America, Japan, Gemany, ERP control pcb process, with complete dust free and esd protection smt workshop, high quality aerospace pcba, medical pcba, automotive pcba, industrial control pcba, smart home pcba, power communication pcba, military pcba all out of FASTPCBA.
As a IATF & ISO certificate pcb assembly manufacturer, FASTPCBA is busy 24/7/365 with pcba orders for over 50 countries 2000 customers. High pcb capacibility ensure punctual pcba delivery all the time, welcome to place pcba order on us.
