| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | PCB Assembly Service |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Number Of Layers: | 1-48 | Min Space: | 0.075mm |
|---|---|---|---|
| Max Size Of Finish Board: | 700*460mm | Component Sourcing: | Yes |
| Min Line/space: | 0.075mm | PCBA Testing: | X-ray,AOI Test,Functional Test |

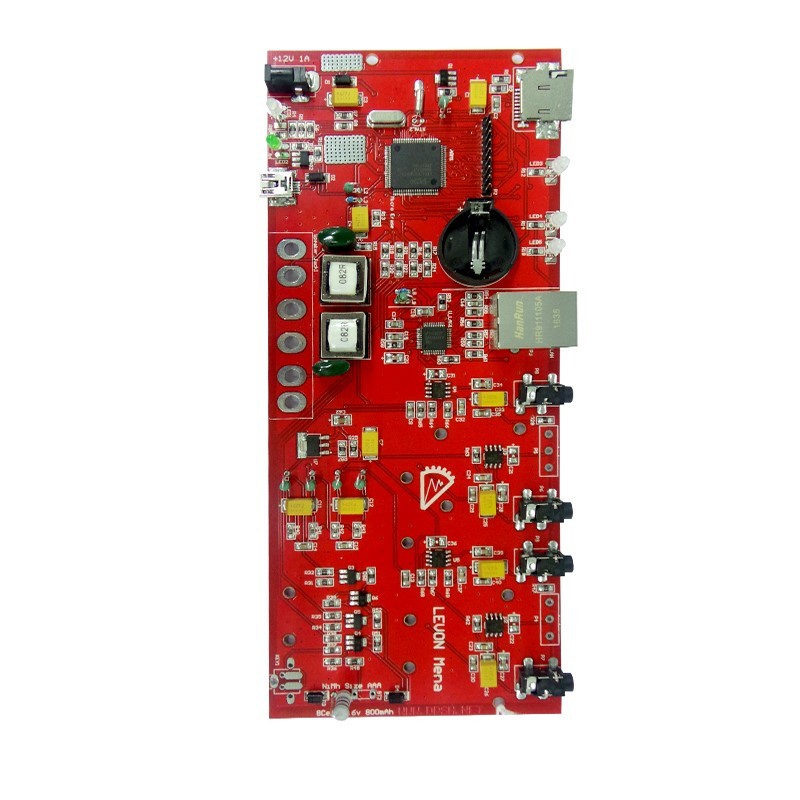

| High Light: | 0.075mm PCB Component Assembly,Rigid Flexible PCBa manufacturing |
||
Technical Specification For PCB
| Number of Layer | 1-48 |
| Order Quantity | 1 to 50,000 |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting | Shear,V-score,Tab-routed |
| Board Thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight | 1.0, 1.5, 2.0 oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Silk Screen Min Line Width | 0.006'' or 0.15mm |
| Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
| Min Trace/Gap | 0.10mm, or 4mils |
| Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
| Surface Finish | HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
| Board Thickness Tolerance | ±10% |
| Copper Weight Tolerance | ± 0.25 oz |
| Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
| V-Score Depth | 20-25% of board thickness |
| Design File Formate | Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
PCB Assembly Capabilities
| Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly | SMT,Thru-hole |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| Components |
Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
| Bare Board Size |
Smallest:0.25*0.25 inches Largest:20*20 inches |
| File Formate |
Bill of Materials Gerber files Pick-N-Place file |
| Types of Service | Turn-key,partial turn-key or consignment |
| Component packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same day service to 15 days service |
| Testing | Flying Probe Test,X-ray Inspection AOI Test |
| PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
FASTPCBA is highly skilled at helping customers transition from consignment and turnkey system manufacturing that includes all components procurement and consulting service.
With over 20 years experience years in EMS field, we build-up a strong relationship with our supplier chain who have commited on our works and will to make our business successful together.
1. 100% Brand New Parts from Reliable Source
2. 100% IQC inspection
3. Suppliers Chain Management & MRP System
4. Rapid lead time
5. Passive and Active components are available
6. RoHS and SGS compliance
FASTPCBA has focused on high quality pcba assembly over 20 years, and it’s arm to better serve for automotive pcba, medical pcba, industry pcba, military pcba, smart home pcba, communication pcba, militay pcba, aerospace pcba etc.
