| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO13485, IATF16949, ISO9001 |
| Model Number: | OEM Automotive PCBA Assembly |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD 0.1-3/ pcs |
| Packaging Details: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Service: | One-stop Service | Layer Count: | 1-48 |
|---|---|---|---|
| Testing Service: | Function Test, 100% Test | MOQ: | No MOQ |
| PCBA Test: | X-ray,AOI Test,Functional Test | Min Line/space: | 0.075/0.075mm |

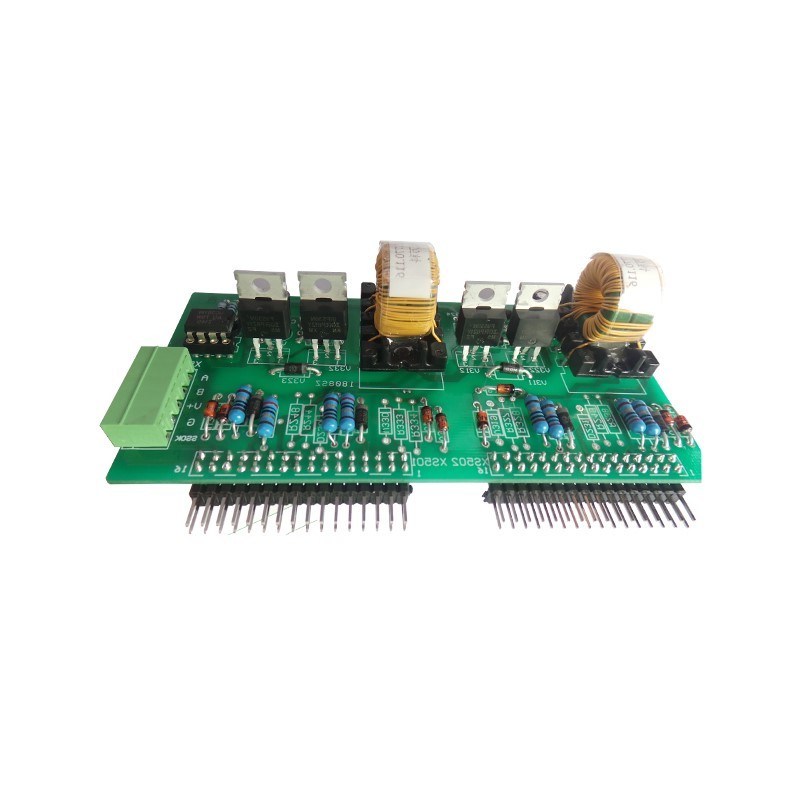

| High Light: | Turnkey Electronic PCB Manufacturing,Double Layer PCB Manufacturing |
||
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
FASTPCBA keeps pace with the times, has imported advanced X-RAY, 3D AOI, selective wave soldering, MADATA, YAMAHA etc equiments, we can provide accurate pcb printing, precise pcb assembly, custom pcb manufacturing, original package componets agent service, save your cost and time at the same time.
Delivery Time for PCB
| Layer | Prototype |
Mass Productions (above 30 m2 ) |
|
| Quick Turn | Unual Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
Delivery Time for PCBA
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
FASTPCBA survival over 20 years, as our goal is always provide best quality pcba solution for customers from domestic and abroad like Gemany, Russia, America, Brazil, Japan, France, UK etc. FASTPCBA can turn your pcb design to pcba or pcb assp, welcome to inquiry and visit us in shenzhen china.
