| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | PCBA Manufacturers |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 0.5-30USD |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 1-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Name: | PCBA Manufacturers | Laminate Materials: | FR4, High TG FR4, High Frequency, Alum, FPC |
|---|---|---|---|
| Number Of Layers: | 1-48 | Silkscreen: | Min Size 0.006″(0.15mm) |

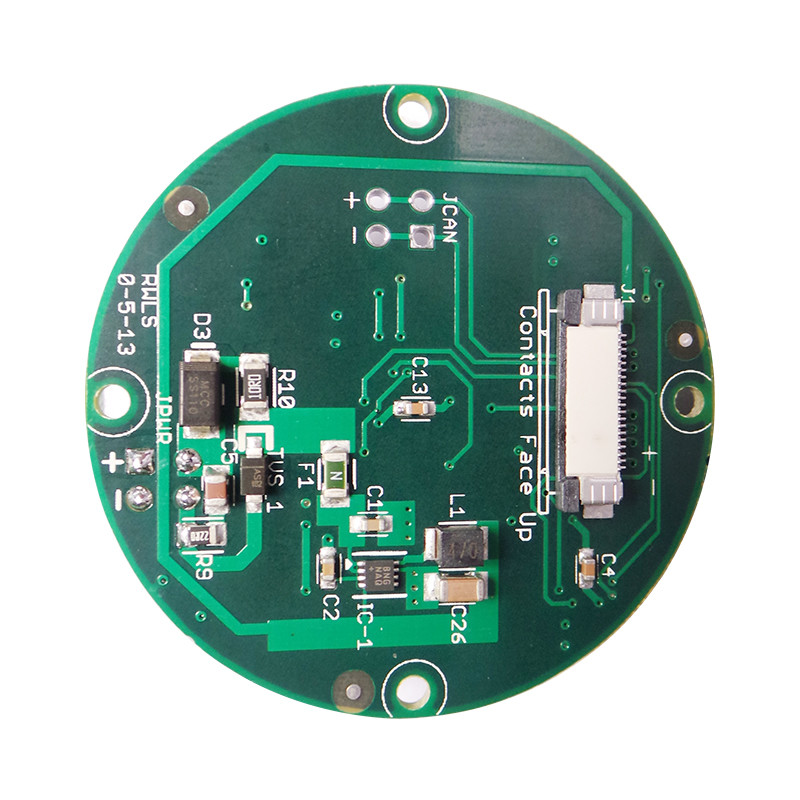

| PCB Outline: | Square,circle,irregular(with Jigs) | Sub-assembly: | Plastic,metal,screen |
| High Light: | High TG FR4 Multilayer PCBs,SMD Printed Circuit Board Assembly |
||
Our PCB Sevices:
1. PCB fabrication.
2. Turnkey PCBA: PCB+components+SMT and through-hole assembly+enclosure molding&housing
3. PCB clone: reverse engineering, with all compoentns compeleted.
Our Advantage:
1. Free programming and free functional test, free package.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% funtional test.
3. Professional service. ISO SMT and through hole assembly, over 20 years experience.
4. Certification for electronics: IATF16949, ISO13485, ISO9001
PCB Manufacture Capacity:
| Item | Specification |
| Material | FR-4, FR1,FR2; CEM-1, CEM-3,Rogers, Teflon,Arlon,Aluminum Base, Copper Base,Ceramic, Crockery, etc. |
| Remarks | High Tg CCL is Available(Tg>=170℃) |
| Finish Board Thickness | 0.2 mm-6.00mm(8mil-126mil) |
| Surface Finish | Gold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um) |
| Shape | Routing,Punch,V-cut,Chamfer |
| Surface Treatment | Solder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA) |
| Silkscreen(black, yellow, white) | |
| Peel able-mask(red, blue, thickness>=300um) | |
| Minimum Core | 0.075mm(3mil) |
| Copper Thickness | 1/2 oz min; 12oz max |
| Min Trace Width & Line Spacing | 0.075mm/0.075mm(3mil/3mil) |
| Min Hole Diameter for CNC Drilling | 0.1mm(4mil) |
| Min Hole Diameter for Punching | 0.6mm(35mil) |
| Biggest panel size | 610mm * 508mm |
| Hole Position | +/-0.075mm(3mil) CNC Drilling |
| Conductor Width(W) | +/-0.05mm(2mil) or +/-20% of original |
| Hole Diameter(H) | PTHL:+/-0.075mm(3mil) |
| Non PTHL:+/-0.05mm(2mil) | |
| Outline Tolerance | +/-0.1mm(4mil) CNC Routing |
| Warp & Twist | 0.70% |
| Insulation Resistance | 10Kohm-20Mohm |
| Conductivity | <50ohm |
| Test Voltage | 10-300V |
| Panel Size | 110 x 100mm(min) |
| 660 x 600mm(max) | |
| Layer-layer misregistration | 4 layers:0.15mm(6mil)max |
| 6 layers:0.25mm(10mil)max | |
| Min spacing between hole edge to circuitry pattern of an inner layer | 0.25mm(10mil) |
| Min spacing between board outline to circuitry pattern of an inner layer | 0.25mm(10mil) |
| Board thickness tolerance | 4 layers:+/-0.13mm(5mil) |
FASTPCBA is the most powerful turnkey assembly factory which accumulates more than 20 years experience. We can manufacture and assemble 1-48 layers full feature pcba like: FPC, Rigid, HDI, BGA, heavy copper, alum, metal core pcb, high frequency, rigid-flex pcb, single/ double sided pcb, multilayers pcbs.
All pcba out of FASTPCBA has obtained certificates of ISO14000, ISO13485, ISO9001 and IATF16949. Customers from military pcba, communication pcba, smart home pcba, industrial pcba, medical pcba, automotive pcba and aerospace pcba prefer to cooperate with us in recently years.
FASTPCBA has developed and become stronger depended on high quality pursuit. With good reputation all over the world, our smt workshop work day and night to pursue punctual pcba delivery for customers over 50 countries.
