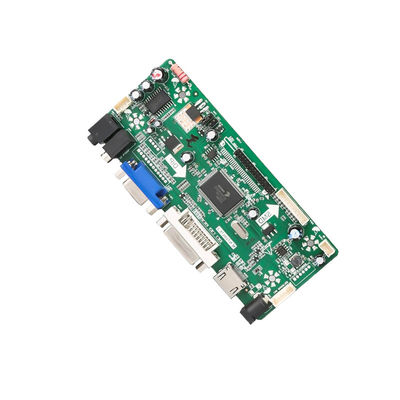

Single Sided Multi Layer SMD PCB Manufacturing Assembly

Single Sided Multi Layer SMD PCB Manufacturing Assembly

  • Single Sided Multi Layer SMD PCB Manufacturing Assembly
  • Single Sided Multi Layer SMD PCB Manufacturing Assembly
  • Single Sided Multi Layer SMD PCB Manufacturing Assembly
Single Sided Multi Layer SMD PCB Manufacturing Assembly
Product Details:
Place of Origin: China
Brand Name: FASTPCBA
Certification: ISO13485, IATF16949, ISO9001
Model Number: SMT PCBA Assembly Services
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD 0.1-3/ pcs
Packaging Details: 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Layer Count: 1-48 Min Line/space: 0.075/0.075mm
Silkscreen: Min Size 0.006″(0.15mm) Min Solder Mask Clearanace: 0.003”(0.07mm)
PCBA Testing: X-ray,AOI Test,Functional Test Tolerance Of Pcb: ±5%
High Light:

SMD PCB Manufacturing Assembly

,

Single Sided PCB Manufacturing

Single Sided Prototyping Smd PCB Circuit Board PCBA Assemble Manufacturing



Manufacturing Capability:

item PCB Assembly Manufacture
Material FR4,CEM-1, Aluminium, Polyamide
Layer No. 1-48
Finished board thickness 0.1 mm-4.0mm
Board Thickness Tolerance ±10%
Cooper thickness 0.5 OZ-3OZ (18 um-385 um)
Copper Plating Hole 18-40 um
Impedance Control ±10%
Warp&Twist 0.70%
Peelable 0.012"(0.3mm)-0.02’(0.5mm)
Images
Min Trace Width (a) 0.075mm (3mil)
Min Space Width (b) 0.1mm (4 mil)
Min Annular Ring 0.1mm (4 mil)
SMD Pitch (a) 0.2 mm(8 mil)
BGA Pitch (b) 0.2 mm (8 mil)
Solder Mask
Min Solder Mask Dam (a) 0.0635 mm (2.5mil)
Solder mask Clearance (b) 0.1mm (4 mil)
Min SMT Pad spacing (c) 0.1mm (4 mil)
Solder Mask Thickness 0.0007"(0.018mm)
Holes
Min Hole size (CNC) 0.2 mm (8 mil)
Min Punch Hole Size 0.9 mm (35 mil)
Hole Size Tol (+/-) PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol ±0.075mm
Plating
HASL 2.5um
Lead free HASL 2.5um
Immersion Gold Nickel 3-7um Au:1-5u''
OSP 0.2-0.5um
Outline
Panel Outline Tol (+/-) CNC: ±0.125mm, Punching: ±0.15mm
Beveling 30°45°
Gold Finger angle 15° 30° 45° 60°
Certificate IATF16949, ISO13485, ISO9001



Single Sided Multi Layer SMD PCB Manufacturing Assembly 0

FASTPCBA is the independent export pcba assembly factory over 20 years, who are recognized as the top 10 pcba manufactuerer global, serving for customers of aviation pcba, automotive circuit board, medical pcba, industrial pcba, communication pcba, smart home pcba, safety protection pcba and military pcba etc.



Single Sided Multi Layer SMD PCB Manufacturing Assembly 1





As the most professional quick turn pcb prototype factory china, FASTPCBA provide one-stop pcba assembly service for customers of medical pcba, automotive pcba, industrial pcba, communication pcba, military pcba, aerospace pcba, smart home pcba, Iot pcba etc over 20 years.



With independent pcb factory in jiangmen guangdong province and pcb assembly factory in shenzhen china, FASTPCBA can provide the most competitive pcb cost for middle and high-end customers. The whole pcb fabrication and assembly process is strictly comply with ISO & IATF certificates, safety,reliable and high yeild pcba obtained.



FASTPCBA is the sole pcba assembly processing factory, who is highly praised by 2000 customers over 50 countries. The road to high quality is hard and long, FASTPCBA will try our best to better serve for customers.



Single Sided Multi Layer SMD PCB Manufacturing Assembly 2

Single Sided Multi Layer SMD PCB Manufacturing Assembly 3



FAQ:



Q:1.Can i have a sample to test?

A:Yes,we can send you samples to test.



Q:2.What specifications do you need for PCB quotation?

A:We need your PCB Gerber file,board thickness,copper thickness,surface finishing and quantity to quote you.



Q:3.What is the lead time?

A:Samples need 3-5days,mass production needs 7-10days,also according to the order volume.



Q:4.Do you have MOQ limit?

A:Even 1 pcs,we care.



Q:5.Can you offer the best price for us?

A:Yes,we are specialized PCB manufacturer directly,we can offer lower price than any trading company.



Q:6.How do you ship the goods and how long does it take arrival?

A:We usually ship by DHL,UPS,FedEx and TNT.It takes 3-5days to arrive.



Q:7.What are the payment terms?

A:You can pay us with Paypal,Western Union and T/T Bank.



Q:8.Can we visit your factory?

A:Yes,welcome to visit our factory anytime,and we will lead you to visit our factory and our production line.
