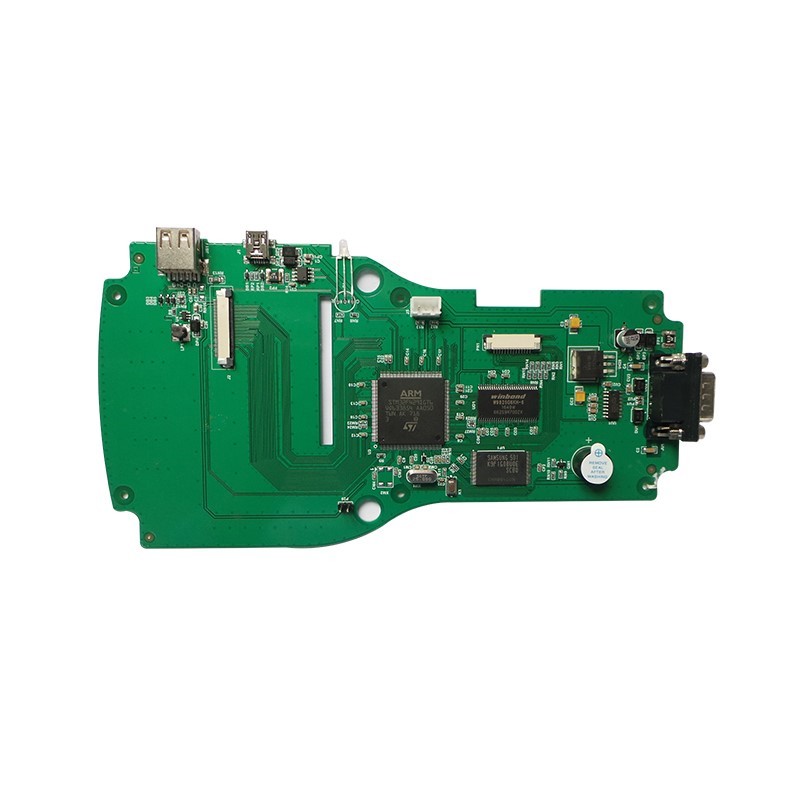

Small Volume Fast PCBA
Product Details:
Place of Origin: China
Brand Name: FASTPCBA
Certification: ISO13485, IATF16949, ISO9001
Model Number: OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD 0.1-3/ pcs
Packaging Details: 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Service: One-stop Service Layer Count: 1-48
Testing Service: Function Test, 100% Test MOQ: No MOQ
PCBA Test: X-ray,AOI Test,Functional Test Solder Mask Color: Yellow,green,blue,white
High Light:

Small Volume Fast PCBA


Electronic Fast PCBA

OEM Electronics Fast PCBA PCB Manufacturer


One-Stop Service:


1. High-end, Small volume and Various kinds of PCBA service offered.


2. Speedy, Flexible and one-stop service in PCBA.


3. Assembly and Purchasing service offered, all components are promised purchased 100% from Original factories or their pointed agents.


4. Transparent quotation,cost and benefit are detailedly opened to customer.


5. With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas.


all new projects can be developed faster and better than expected.

6. Technical backbone workers have more than 10 years'working experience and 85% of front-line operators have more than 5 years' working experience.


7. With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable.


8. Workshops strictly implement 5S production standards.


Small Volume Fast PCBA 0



Specification of PCBA assembly:


PCBA Type of Assembly SMT,DIP, Mixed(surface mount and through hole) technology,Cable assembly
Solder Type of electronic PCBA Water Soluble Solder Paste,Leaded and Lead-Free
Minimum IC Pitch for OEM PCBA 0.2mm
Minimum chip size PCBA board 0201 (0.2x0.1)/0603 (0.6 x 0.3mm)
Maximum BGA size SMT Assembly PCBA 74x74mm
BGA ball pitch PCBA 1.00mm (minimum),3.00mm (maximum)
BGA ball diameter Pcba Assembly 0.40mm (minimum),1.00mm (maximum)
Components BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly pcba
Fine Pitch to 0.8mils
BGA Repair and Reball
Passive components
As small as 0402 package
As small as 0201 with design review
Ball Grid Arrays(BGA)
As small as .5mm pitch
Part Removal and Replacement
Bare Board Size Smallest:0.25*0.25 inches
Largest:20*20 inches
File Formate Bill of Materials
Gerber files
Pick-N-Place file
Types of Service Turn-key,partial turn-key or consignment
Component packaging Cut Tape,Tube,Reels,Loose Parts
Turn Time Same day service to 15 days service
Testing First prototype test before mass quantity production,Flying Probe Test,X-ray Inspection AOI Test,BGA X-ray, PCB E-test


Small Volume Fast PCBA 1

Small Volume Fast PCBA 2

Small Volume Fast PCBA 3
