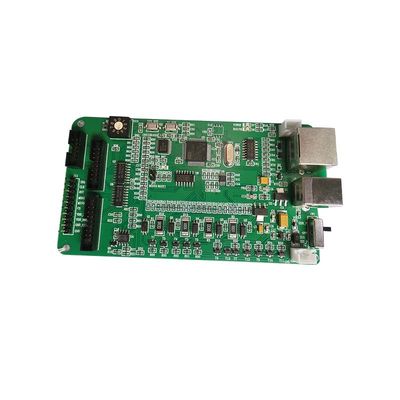

RoHS Medical PCBA

RoHS Medical PCBA

  • RoHS Medical PCBA
  • RoHS Medical PCBA
RoHS Medical PCBA
Product Details:
Place of Origin: China
Brand Name: FASTPCBA
Certification: ISO13485, IATF16949, ISO9001
Model Number: SMT PCBA Assembly Services
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD 0.1-3/ pcs
Packaging Details: 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Layer Count: 1-48 Min Line/space: 0.075/0.075mm
Silkscreen: Min Size 0.006″(0.15mm) Min Solder Mask Clearanace: 0.003”(0.07mm)
PCBA Testing: X-ray,AOI Test,Functional Test Tolerance Of Pcb: ±5%
High Light:

SMT Medical PCBA


RoHS Medical PCBA

OEM Medical PCBA Circuit Board Assembly


PCB board file with parts list provided by customers


* PCB board made, circuit board parts purchased by us


* PCB board with parts assembled


* Electronic testing circuit board or PCBA


* Fast delivery, anti-static package


* RoHS Directive-compliant, lead-free


* One stop service for PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery


RoHS Medical PCBA 0


RoHS Medical PCBA 1


layer 1 to 48 layer
Material FR-1/ FR-2/ FR-3/ FR4 /FR-5 /FR-6 /G-10 /CEM-1/ CEM-2 /CEM-3 /CEM-4 /CEM-5 /AIN /SIC
Board Shape Rectangular, Round, Slot, Cutout, Complex, Irregular
Board Type Rigid, Flexible, Rigid-flexible
Board Cutting Shear, V-score, Tab-routed
Board Thickness 0.4-4.0mm, Flex 0.01-0.25''
Copper Weight 0.5OZ, 1OZ, 2OZ, 3OZ, 4OZ
Solder Mask Double-sided green LPI, Also support red, white, yellow, blue, black
Silk Screen Double-sided, or single-sided in white, yellow, black, or negative
Silk Screen Min Line Width 0.006'', 0.15mm
Max Board Dimensions 20inch*20inch, or 500mm*500mm
Min Drill Hole Diameter 0.01'', 0.25mm, or 10 mils
Surface Finishing HASL, Nickel, Immersion Au, Immersion Ag,, OSP etc
Board Thickness Tolerance ± 10%
Copper Weight Tolerance ± 0.25 OZ
Minimal Slot Width 0.12'', 3.0mm, or 120mils
V-score Depth 20-25% of board thickness
Plated Through Holes Yes
Sink Holes Yes
Design File Format Gerber RS-274X, 274D, Eagle and Auto CAD'S DXF, DWG


RoHS Medical PCBA 2


As the experienced quick turn pcb prototype factory china, FASTPCBA provide one-stop pcba assembly service for customers of smart home pcba, Iot pcba, aerospace pcba, military pcba, communication pcba, industrial pcba, automotive pcba, medical pcba etc over 20 years.


With independent pcb factory in jiangmen guangdong province and pcb assembly factory in shenzhen china, FASTPCBA can provide the most competitive pcb cost for middle and high-end customers. The whole pcb fabrication and assembly process is strictly comply with ISO & IATF certificates, safety,reliable and high yeild pcba obtained.


FASTPCBA is the sole pcba assembly processing factory, who is highly praised by 2000 customers over 50 countries. The road to high quality is hard and long, FASTPCBA will try our best to better serve for customers.


RoHS Medical PCBA 3
