| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | PCB Assembly |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1-20 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Laminate Materials: | FR4, High TG FR4, High Frequency, Alum, FPC | Number Of Layers: | 1-48 |
|---|---|---|---|
| Board Thickness: | 0.1-4mm±10% | Cu Weight: | 0.5-4 0z |
| Min Line/space: | 0.075/0.075mm | Sub-assembly: | Plastic,metal,screen |

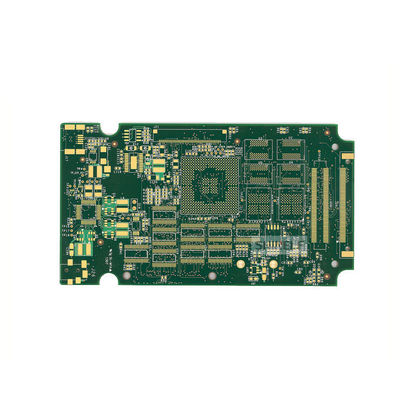

| High Light: | Ipc Multilayer Printed Circuit Board,94v-0 Multilayer Printed Circuit Board,FR4 Multilayer Pcb Fabrication |
||
Product Description:
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | ||
| Board thickness | Standard | (0.1-4mm±10%) | |
| Min. | Single/Double:0.008±0.004” | ||
| 4layer:0.01±0.008” | |||
| 8layer:0.01±0.008” | |||
| Bow and twist | 7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”(0.2mm) | |
| Drill deviation | ±0.002″(0.05mm) | ||
| PTH hole tolerance | ±0.002″(0.005mm) | ||
| NPTH hole tolerance | ±0.002″(0.005mm) | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″(0.07mm) | ||
| Thickness | (0.012*0.017mm) | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″(0.15mm) | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949, ISO13485, ISO9001 | ||
| Delivery time: | PCB | 3-12days | |
| PCBA | 8-20days | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 450*450mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||
FASTPCBA is the high tech pcba factory in shenzhen china over 20 years, our pcba service feature: middle and small batch quick pcb prototype, turnkey pcb assembly, high quality custom pcba manufacturing, original package components procurements etc.
With complete dust free & esd protection smt workshop, FASTPCBA has win trust and support from domestic and abroad customers of industrial control, power communication, medical, automotive etc. All pcba products here abide by ISO9001 & ISO13485 & ISO14000 &IATF16949 certificates, reliable and stable pcb manufacturing and assembly service are assured.
FASTPCBA believes quality derives from profession, reputation wins the future. From grass-roots employees to senior management all concentrate on precise and high quality pcba solutions to provide better service for customers.
FASTPCBA is the sole middle scale pcba assembly factory, with ISO & IATF certificates at the same time, can ensure high quality pcba service for customers of smart home,automotive, medical, industry, communication, military, aerospace etc.
