| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO9001, ISO14001, ISO13485, IATF16949 |
| Model Number: | Pcb Manufacturer |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD 0.1-3/ pcs |
| Packaging Details: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Service: | One-stop PCB And SMT Assembly | Layer Count: | 1-48 |
|---|---|---|---|
| MOQ: | No MOQ | PCBA Test: | X-ray,AOI Test,Functional Test |
| Solder Mask Color: | Yellow,green,blue,white,black | Max Size Of Finish Board: | 700*460mm |
| High Light: | FR4 Printed Circuit Board,6OZ FR4 Printed Circuit Board,94v0 Quick Turn Aluminum PCB |
||

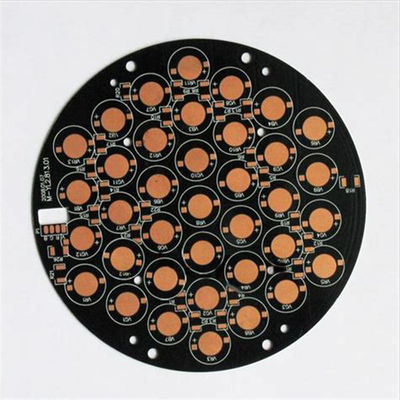

Aluminum PCB is a circuit board called PCB circuit board production.
Aluminum PCB is a unique metal-based copper clad laminate, PCB aluminum substrate has good thermal conductivity, electrical insulation properties and mechanical processing properties.
Features of Aluminum PCB
1. Aluminum PCB surface mount technology (SMT); Aluminum PCB has good heat dissipation performance in the circuit design scheme;
2. Aluminum PCB can reduce the temperature, improve the power density and reliability of the product, and extend the service life of the product;
3. Aluminum PCB can reduce the volume and reduce the cost of hardware and assembly;
4. Aluminum PCB can replace ceramic substrates to obtain better mechanical endurance.
| OEM Services: | |||
| Layers | 1-48 layers | Min. line width | 2mil |
|
Max.board size (single&doule sided) |
700*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish |
HAL(with Pb free),plated Ni/Au, Immersion silver,Imm Ni/Au,Imm Sn, hard gold,OSP,ect |
Min.board thickness(multilayer) | 4layers:0.4mm;
6layers:0.6mm;
8layers:1mm;
10layers:1.2mm
|
| Board materials |
FR4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); thick copper |
Plating thickness (Technique: Immersion Ni/Au) |
Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% |
Distance between line to board edge |
Outline: 0.2mm V-CUT: 0.4mm |
|
Base copper thickness(Inner and outer layer) |
Min. thickness:1/3 OZ Max.thickness:6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers:
Min.thickness 1 OZ,
Max.thickness 10 OZ
Inner layers:
Min.thickness 0.5OZ,
Max.thickness 6 OZ
|
Max.board thickness(single&doule sided) | 6mm |
FASTPCBA can be called a “corrected pcba assembly factory”, who can provided free value added pcba files revision service and turn your pcb design to the most highest quality pcb fabrication and assembly products, as we have engineer teams average pcba industry experience over 20 years to optimize the customer's pcb design but keep the use function at the same time.
FASTPCBA continuously imported advanced pcb machine from Japan,America, Gemany, ERP control pcb process, with complete dust free and esd protection smt workshop, high quality military pcba, power communication pcba, smart home pcba, industrial control pcba, automotive pcba, medical pcba, aerospace pcba all out of FASTPCBA.
As a IATF & ISO certificate pcb assembly manufacturer, FASTPCBA is busy 24/7/365 with pcba orders for over 50 countries 2000 customers. High pcb capacibility ensure punctual pcba delivery all the time, welcome to place pcba order on us.
