Name: Flexible 4mm Thickness Immersion Gold Fr4 FPC Circuit Board
Brand: FASTPCBA
SKU: OEM PCB/PCBA Manufacturing

Home Products Flexible PCBs

Flexible 4mm Thickness Immersion Gold Fr4 FPC Circuit Board

Product Details:

Place of Origin:	China
Brand Name:	FASTPCBA
Certification:	ISO13485, IATF16949, ISO9001,IOS14001
Model Number:	OEM PCB/PCBA Manufacturing

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Final price depends on actual order
Packaging Details:	1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.
Delivery Time:	1-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Layer Count:	1-48	Max Size Of Finish Board:	700*460mm
Sub-assembly:	Plastic,metal,screen	Board Thickness:	0.1-4mm±10%
Drill Deviation:	±(0.05mm)	Min Line/space:	0.075/0.075mm
MOQ:	1pcs
High Light:	Immersion Gold FPC Circuit Board , 4mm Thickness FPC Circuit Board , Fr4 Double Side Circuit Board

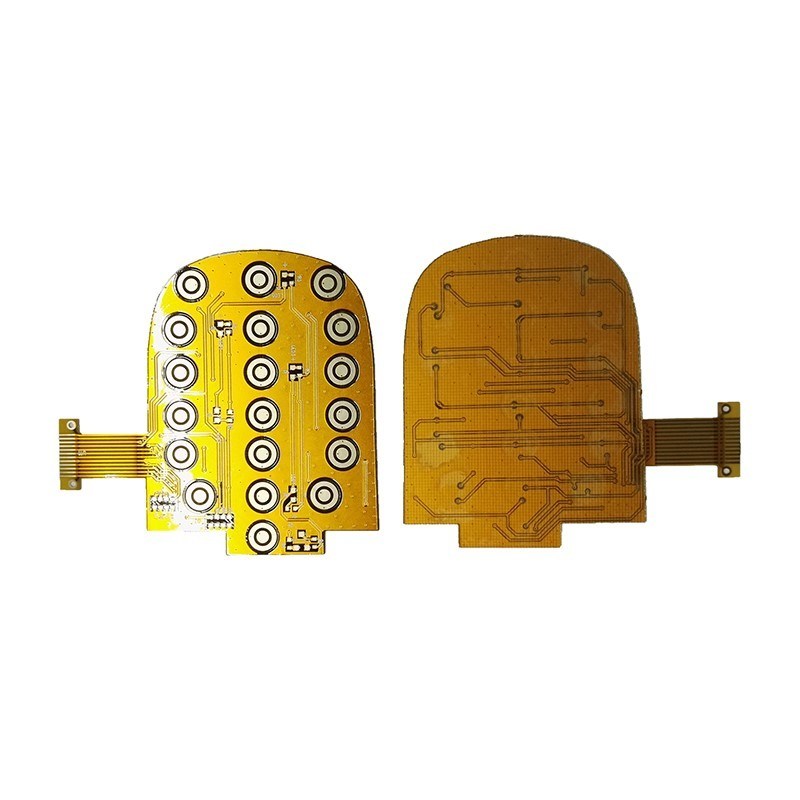

Double-Side Flexible Circuit Board Immersion Gold FPC Board

layer: double-side board fpc
thickness: 0.13mm
min-hole: 0.25mm
surface:immersion gold

Our Service Type
FASTPCBA is a professional PCB & PCBA manufacturer in Shenzhen China.Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.

FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.

FPC ( Flexible Printed Circuit ) Specifications

Layer	1－6 layer
FPC size(max/min)	Min: 10x45mm Max:250x1200mm
Thickness	0.050mm—0.2mm
Through Hole diameter(Max)	6.5mm
Through hole size(min)	0.2mm
Through hole tolerance	±0.025mm
Hole copper thickness	Min8μm Max38μm
Min line width/space	0.04/0.04 mm
Etching Tolerance	±20％
The accuracy of the pattern on the hole	±2mil
Punching size(max)	φ3.175mm
Punching size(min)	φ2.0mm
Punching aperture Thickness(Max)	0.2mm
Thermosetting inks tolerance	±0.2mm
Green oil(Min)	0.1mm
Solder pad(min)	8mil*8mil
Solder pad distance(Min)	8mil
tolerance(Min)	±0.1mm
Available Laminates Material	Pl. PET. FR4-Pl
Copper foil thickness	12um, 18um, 35um, 70um
