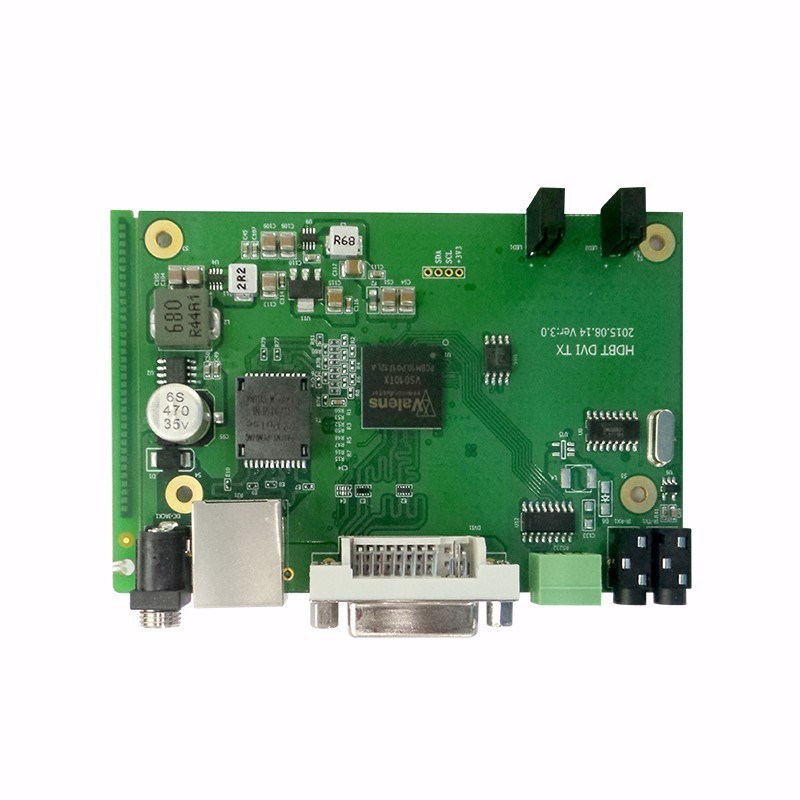

Smt Pcb Assembly 0.1mm Customized PCB Board Making

Smt Pcb Assembly 0.1mm Customized PCB Board Making

Smt Pcb Assembly 0.1mm Customized PCB Board Making
Smt Pcb Assembly 0.1mm Customized PCB Board Making
Smt Pcb Assembly 0.1mm Customized PCB Board Making
Product Details:
Place of Origin: China
Brand Name: FASTPCBA
Certification: ISO9001/IOS14001/ISO13485/IATF16949
Model Number: PCB Manufacturing and Assembly
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Final price depends on actual order
Packaging Details: 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.
Delivery Time: 1-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: PCB Manufacturing And Assembly Layer: 1-48 Layer
Material: FR4,FR1,CEM-3,CEM-1,Rogers,Aluminum,High Frequency Board,etc Board Thickness: 0.2-4mm, Regular 1.6mm
Copper Thickness: 0.5-4oz, Regular 1oz Solder Mask: Green, Red, Blue, Yellow, Or Customize
Silk Screen: White, Black, Or Customize. Min Trace/Gap: 0.1mm Or 4mils
High Light:

0.1mm Customized PCB Board Making


0.1mm Smt Pcb Assembly


FR1 PCB Board Making

Smt Pcb Assembly 0.1mm Customized PCB Board Making


Printed Circuit Board Assembly (PCBA) is one of our core services FASTPCBA. From multi-layered to flexible printed circuit boards, FASTPCBA is your one-stop shop for PCB Manufacturing + Components Sourcing + PCB Assembly + Testing, and other electronic manufacturing services companies. We provide our customers with PCB solutions and services worldwide.


FASTPCBA has excellent research and development team and reliable manufacturing technology. and been keeping in higher pursue . Up to date we have obtained lots of self-owned core technologies.The company has super advantage in the aspect of manufacturing capacity. The operating time of 24 hours per day assure the maximal manufacturing capacity. 230 million pieces can be assembled per month.


FASTPCBA has perfect quality management system, and the products will be double inspected before plant clearance. The application of AOI(Automatic Optic Inspection)and practical running-in experience between human and machine for million times can make the pass percent of clearance products above 99.98%. Paying attention to the details, reaching the acme of perfection, always endeavoring to do better and to succeed for one time will let you have the best satisfaction.



Description for PCB Manufacturing and Assembly



PCB Manufacturing and Assembly


FR4,FR1,CEM-3,CEM-1,Rogers,Aluminum,High Frequency Board,etc


1,2,4,6,8...48 Layer


Rectangular, Round, Slots, Cutouts, Complex, Irregular,or Customize.


Shear, V-score, Tab-routed

Board Thickness

0.2-4mm, regular 1.6mm

Copper Thickness

0.5-4oz, regular 1oz

Solder Mask

Green, Red, Blue, Yellow, or Customize.

Silk Screen

White, Black, or Customize.

Silk Screen Min Line Width

0.006" or 0.15mm

Min Trace/Gap

0.1mm or 4mils

Min Drill Hole Diameter

0.01",0.25mm or 10mils

Surface Finish

HAL,plated Ni/Au,Imm silver,Imm Ni/Au/Sn,hard gold,OSP,etc


Smt Pcb Assembly 0.1mm Customized PCB Board Making 0



FASTPCBA Electronics Co., Ltd., owns leading quality control inspection equipment and high-standard anti-static as well as dust-free workshop production environment in electron industry.

We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.


Smt Pcb Assembly 0.1mm Customized PCB Board Making 1



The QA report before shipment and strict control for each production process ensure high-quality and stability of each product. Without any secrets, we just concentrate on every detail.


Smt Pcb Assembly 0.1mm Customized PCB Board Making 2


Q1: What service do you have?
A: We provide turnkey solution, PCB fabrication, SMT, final assembly,testing and other value-added service.


Q2: What are the main products of your PCB/PCBA services?
A: Our PCB/PCBA services are mainly for the industries including Medical, Automotive, Energy, Aerospace equipment, Military defense equipment.


Q3: Is FASTPCBA a factory or trade company?
A: Intech is a factory with PCB factory, Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.


Q4: Can we inspect quality during production?
A: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.


Q5: How can we ensure our information should not let third party to see our design?
A: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.


Q6: What does FASTPCBA need for a customized PCB order?
A: When you place a PCB order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products.


Q7: What does FASTPCBA need for a customized PCBA order?
A: When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list to us.
