| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO13485, IATF16949, ISO9001,IOS14001 |
| Model Number: | Printed Circuit Board Assemblies |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable (Depends on your gerber and bom) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 1-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000pcs/month |
| Service: | Rigid-flex Pcb Fabrication | Max. Layer Count: | 20 Layer |
|---|---|---|---|
| Max. Finished Thickness: | 3.2mm | Max. Board Size: | 500X630mm |
| Min. Laser Dirlled Hole Size: | 0.1mm | Min. Mechanical Drilled Hole Size: | 0.15mm |
| Min. Soldermask Bridge: | 0.08mm | Min. BGA Pitch: | 0.5mm |
| High Light: | 3.2mm Rigid Flexible PCB Assemblies,3.2mm Quick Turn Pcb Fabrication,ISO13485 Rigid Flexible PCB |
||

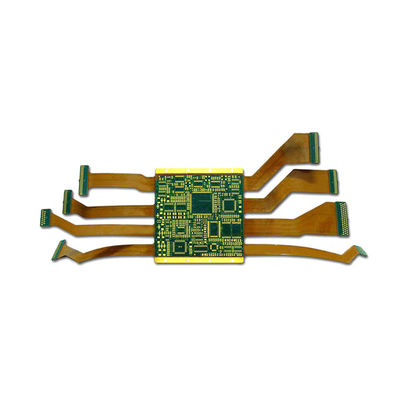

Quick Turn Pcb Fabrication 3.2mm Rigid Flexible PCB Assemblies
FASTPCBA has served companies in industries such as medical, telecommunications and manufacturing with our superior quality Flex-rigid PCB manufacturing services. Our experience and technical expertise enables us to develop custom flex-rigid PCBs for any specific applications.
As with all types of flexible circuit boards, the Rigid-flex PCB will perform well in even the harshest environments, especially those featuring extreme heat. A rigid flex board is also easy to test, making it well-suited for prototyping.
Here is FASTPCBA full feature flex-rigid PCB manufacturing capabilities:
|
Item |
|
|||
|
Max. Layer Count |
20 Layer |
|||
|
Max. Finished Thickness |
3.2mm |
|||
|
Max. Board Size |
500X630mm |
|||
|
Min. Laser Dirlled Hole Size |
0.1mm |
|||
|
Min. Mechanical Drilled Hole Size |
0.15mm |
|||
|
Min. Mechanical Through Hole Aspect Ratio |
13:1 |
|||
|
Min. Inner Layer Trace Width/Spacing |
0.05mm/0.05mm |
|||
|
Min. Outer Layer Trace Width/Spacing |
0.075mm/0.075mm |
|||
|
Soldermask Registraction |
0.038mm |
|||
|
Min. Soldermask Bridge |
0.08mm |
|||
|
Min. BGA Pitch |
0.5mm |
|||
|
Min. Single-ended Impedance Tolerance |
±10% |
|||
|
Min. Differential Impedance Tolerance |
±10% |
|||
|
Base Material |
General TG,Middle TG,High TG,Halogen Free,Low Dk,Low loss,High CTI,PTFE |
|||
|
Material |
Shengyi,ITEQ,Rogers |
|||
|
Surface Finish |
ENIG,ENEPIG,OSP,Glod Plating,Glod Plating+ENIG,Glod Plating+OSP,Immersion Silver,Immersion Tin,Plating Tin |
|||
|
Advanced Product |
Rigid-flex+HDI |
Mass Production |
Sample Production |
Mass Production |
Our Service Type
FASTPCBA is a professional PCB & PCBA manufacturer in Shenzhen China.Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.
FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO9001, ISO14001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
We have profuse experience in manufacturing PCB. Fastpcba PCB daily capacity is 1200 square meters, we can deliver the Single sided, Double sided PCB sample within 24 hours, 4-8 layer PCB in 3-5 working days,for the batch quantity for double side PCB,The lead time is 3-5 working days, 4-8 layers is 5-8 days. The quick and fast lead time stably ensures our customer of quick research speed to occupying the market.
We have a global sales team available to assist you with PCB Manufacturing & PCB Assembly services, Send your PCB files to get better price now !
