|Place of Origin:||China|
|Certification:||ISO13485, IATF16949, ISO9001,IOS14001|
|Model Number:||One-Stop Service Electronic Assembly|
|Minimum Order Quantity:||1 PCS|
|Price:||Negotiable (Depends on your gerber and bom)|
|Packaging Details:||PCB: Vacuum Packing / PCBA: ESD Packing|
|Delivery Time:||1-30 work days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Service:||Pcb Pcba Manufacturer||Layer:||1-48 Layers|
|Position Accuracy:||20 Um||Max. Component Height:||25mm|
|PCB Thickness:||0.3 To 6mm||Max. PCB Width:||450mm|
|Component Height:||Top 120mm/Bot 15mm||Metal Type:||Part, Whole, Inlay, Sidestep|
8 Layer Electronic PCB Board Assembly,
IOS14001 Electronic PCB Board Assembly,
IOS14001 Circuit Board Fabrication

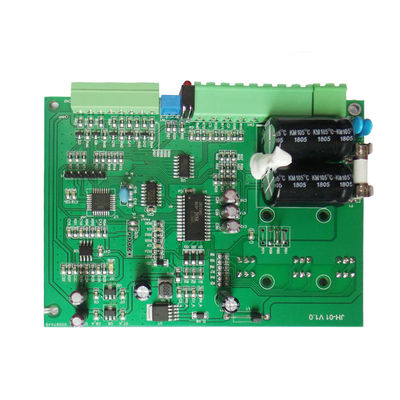

6 Layer 8 Layer Electronic PCB Board Assembly Circuit Board Fabrication
One-Stop Service Electronic Assembly 6 Layer 8 Layer Pcb Circuit Board Pcb Manufacturer
FASTPCBA Electronics Co., Ltd. is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of PCB PCBA, with production capability 35,000 square meters.
FASTPCBA serves enterprises related to medical electronics, communication equipment, Industrial Control (ISC), electronic instruments and apparatus, intelligent hardware, Internet of Things (IoT) application and Industry solutions, etc.
FASTPCBA always strives to create world’s best electronic manufacturing system, making a new round of electronic revolution and industrial structure transformation.
PCBA Technical Capacity
|SMT||Position accuracy:20 um|
|Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP|
|Max. component height::25mm|
|Max. PCB size:680×500mm|
|Min. PCB size:no limited|
|PCB thickness:0.3 to 6mm|
|Wave-Solder||Max. PCB width:450mm|
|Min. PCB width: no limited|
|Component height:Top 120mm/Bot 15mm|
|Sweat-Solder||Metal type :part, whole, inlay, sidestep|
|Metal material:Copper , Aluminum|
|Surface Finish:plating Au, plating sliver , plating Sn|
|Air bladder rate:less than20%|
|Testing||ICT,Probe flying,burn-in,function test,temperature cycling,AXI – 2D and 3D automated X-ray inspection, AOI – automated optical inspection|
We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
Got a Project Ready for Assembly?
We are ready to provide you with a high-quality, one-stop-shop experience for any and all of your PCB assembly requirements right now.
Please fill out the form below (or attach your Gerber files / Bom list By email: firstname.lastname@example.org), to get a free quote on PCB assembly services, one of our helpful staff will contact you shortly.
Pls double check your email if correct. Pls write your Company too so that you can get better services, Thanks.
