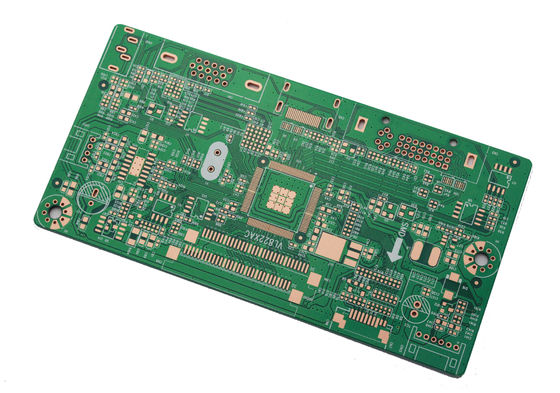

Product Details:
|
| Copper Thickness: | 1oz,0.5-2.0 Oz,1-3oz,0.5-5oz,0.5-4oz | Base Material: | FR4, Aluminium, TG, Rogers, CEM-1 |
|---|---|---|---|
| Board Thickness: | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0mm | Min. Line Width: | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm |
| Min. Hole Size: | 0.25mm, 0.1mm, 0.2 Mm, 0.15-0.2mm, 0.1mm-1mm | Surface Finishing: | HASL, OSP, ENIG, HASL Lead Free, Immersion Gold |
| Application: | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On | Solder Mask Color: | Green/black/white/red/blue Etc., Customized |
| High Light: | high frequency pcb manufacturer,ceramic pcb manufacturer,pcb manufacturer hobbyist |
||
Our Advantages:
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 21 years experience.
4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001, ISO14001,IATF16949
Advantages of single layer circuit board
(1) Low cost: The manufacturing cost of single-layer PCB board is relatively low, because only one layer of copper foil and one layer of substrate are needed, and the manufacturing process is relatively simple.
(2) Easy production: Compared with other structural types of PCB board, the production method of single-layer PCB board is relatively simple, only need to carry out single-side wiring and single-layer corrosion, so the production difficulty is low.
(3) High reliability: Single-layer PCB board does not have multi-layer wiring and connection, so it is not easy to short-circuit and interference problems, with high reliability.
(4) Suitable for simple circuit: single-layer PCB board is suitable for simple circuit design, such as LED lights, sound, etc., can meet most of the low complexity of the circuit requirements.
| Material | CEM-1, CEM-3, FR-4, Aluminum, Rogers, high Tg etc. | |||||
| Board thickness | Mass production: 394mil(10mm) Samples: 17.5mm | |||||
| Surface finish | HASL, OSP, Immersion Gold/Silver/Tin, ENIG, Gold Finger | |||||
| PCB Max panel size | 1150mm × 560mm | |||||
| Layer | 1-64 L | |||||
| Min hole size | Mechanical drill: 6mil(0.15mm) Laser drill: 3mil(0.075mm) | |||||
| PCBA QC | X-ray, AOI Test, Functional Test,QC, QA, QE | |||||
| Special Process | Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Partial-hybrid, Partial high density, Back drilling, impedance requirement, and Resistance control. | |||||
| Our service | PCB manufacturing, Procurement of Components, SMT/DIP PCBA assembly, Line and functional test, Installation, OEM service | |||||
| Sanforized | Buried via, Blind via, Mixed Pressure, Embedded Resistance, Embedded Capacitance, Local Mixed Pressure, Local High Density, Back drill, impedance control. | |||||
| SMT Capacity | 700Million Points/Day, BGA 01005 | |||||
| DIP Capacity | 0.5Million Points/Day | |||||
| Certificate | RoHS/ISO9001/TS16949/UL/ISO14001/ISO13485 | |||||
