|Board Thickness:||1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0m||Copper Thickness:||1oz,0.5-2.0 Oz,1-3oz,0.5-5oz,0.5-4oz|
|Base Material:||FR-4, CEM-3, Aluminum, CEM-1 OR FR-4, Alum||Application:||Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On|
|Color:||Green, Customized Color, Blue On Your Request||Standards:||IPC-A-610 E Class II-III, IPC 6021 Class 2, TDR Testing, ISO 9001, Class 3|
|Min. Line Width:||3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm||Min. Hole Size:||0.25mm, 0.1mm, 0.2 Mm, 0.15-0.2mm, 0.1mm-1mm|
single sided and double sided pcb,
single sided pcb design,
assembly of printed circuit boards
The standard PCB board is a general term for all printed boards, which can be divided into single-layer boards or multi-layer boards as required. The substrate of the board itself is made of an insulating, non-bendable material. You can see that on the surface
The wiring material is copper foil. Originally, the copper foil is covered on the whole board, but in the manufacturing process, the middle part is etched away, and the remaining part becomes a network of small lines. These lines are called conductors

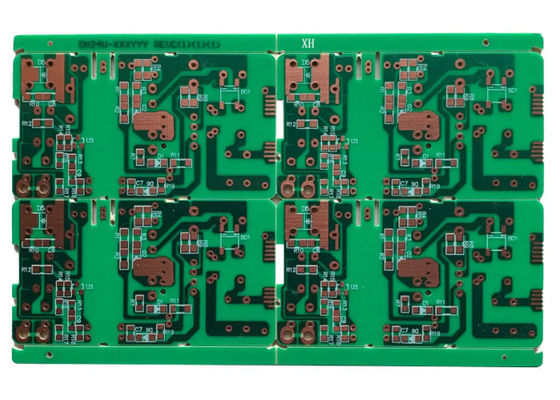

pattern) or wiring, and used to provide circuit connection of parts on PCB. The PCB board is V-CUT
PCB, that is, there are several boards in a board, not a single out. Plate shipment is roughly the same, mold out of the plate when a four, six, eight and so on. Not single out to facilitate the production of SMD components.
|Turnkey PCBA||PCB+components sourcing+assembly+package|
|Assembly details||SMT and Thru-hole, ISO lines|
|Lead Time||Prototype: 15 work days. Mass order: 20~25 work days|
|Testing on products||Flying Probe Test, X-ray Inspection, AOI Test, functional test|
|Quantity||Min quantity: 1pcs. Prototype, small order, mass order, all OK|
|Files we need||PCB: Gerber files(CAM, PCB, PCBDOC)|
|Files we need||Components: Bill of Materials(BOM list)|
|Files we need||Assembly: Pick-N-Place file|
|PCB panel Size||Min size: 0.25*0.25 inches(6*6mm)|
|Max size: 20*20 inches(500*500mm)|
|PCB Solder Type||Water Soluble Solder Paste, RoHS lead free|
|Components details||Passive Down to 0201 size|
|Components details||BGA and VFBGA|
|Components details||Leadless Chip Carriers/CSP|
|Components details||Double-sided SMT Assembly|
|Components details||Fine Pitch to 0.8mils|
|Components details||BGA Repair and Reball|
|Components details||Part Removal and Replacement|
|Component package||Cut Tape,Tube,Reels,Loose Parts|
|PCB assembly||Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing|
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 21 years experience.
4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001, ISO14001,IATF16949
Kerongda is a PCB manufacturer, providing turnkey and partial turnkey printed circuit board assembly services.We can produce customized PCB board and PCBA for you ,PCB solder mask color ,material, thickness etc... all can be chosed as your demands.
Contact Person: Wang
