| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | IATF16949, ISO13485, ISO9001 |
| Model Number: | Multilayer PCBs Assembly |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 1-20 |
| Packaging Details: | PCB: Vacuum Packing/ PCBA: ESD Packing |
| Delivery Time: | 5 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 150000 Pieces per Month |
| Number Of Layers: | 1-48 | PCBA Testing: | X-ray,AOI Test,Functional Test |
|---|---|---|---|
| Max Size Of Finish Board: | 700*460mm | Min Space: | 0.075mm |
| Function Test: | 100% Functional Test | ||

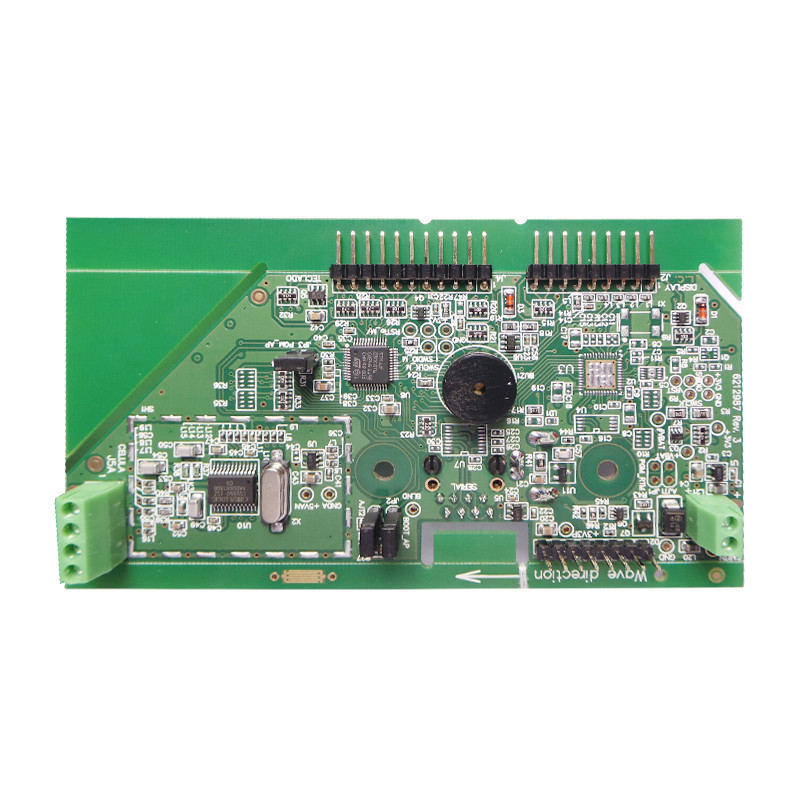

| High Light: | Flexible Turnkey PCB Assembly,2 Layer Turnkey PCB Assembly |
||
Product parameters:
| Description | Capability |
| Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) |
| Standard | (0.1-4mm±10%) |
| Board Thickness | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” | |
| 8layer:0.01±0.008” | |
| Bow and twist | no more than 7/1000 |
| Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Solder Mask Thickness | (0.012*0.017mm) |
| Silkscreen Color | white,black,yellow,blue… |
| Silkscreen Min size | 0.006″(0.15mm) |
| Max Size of Finish Board | 700*460mm |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB Outline | Square,circle,irregular(with jigs) |
| Package | QFN,BGA,SSOP,PLCC,LGA |
FASTPCBA is the best pcba factory in china for customers of communication, automotive, medical, industry, military, aerospace, smart home, which keep long-term cooperation with domestic and abroad clients over 20 years.
FASTPCBA Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 20 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.
ASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
