| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO13485, IATF16949, ISO9001 |
| Model Number: | OEM |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD 0.1-3/ pcs |
| Packaging Details: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Service: | One-stop Service | Layer Count: | 1-48 |
|---|---|---|---|
| Testing Service: | Function Test, 100% Test | MOQ: | No MOQ |
| PCBA Test: | X-ray,AOI Test,Functional Test | Solder Mask Color: | Yellow,green,blue,white |
| High Light: | 0.8mm PCB Assembly Service,Double Sided printed circuit board manufacturing,0.8mm Double Sided PCB Assembly Service |
||

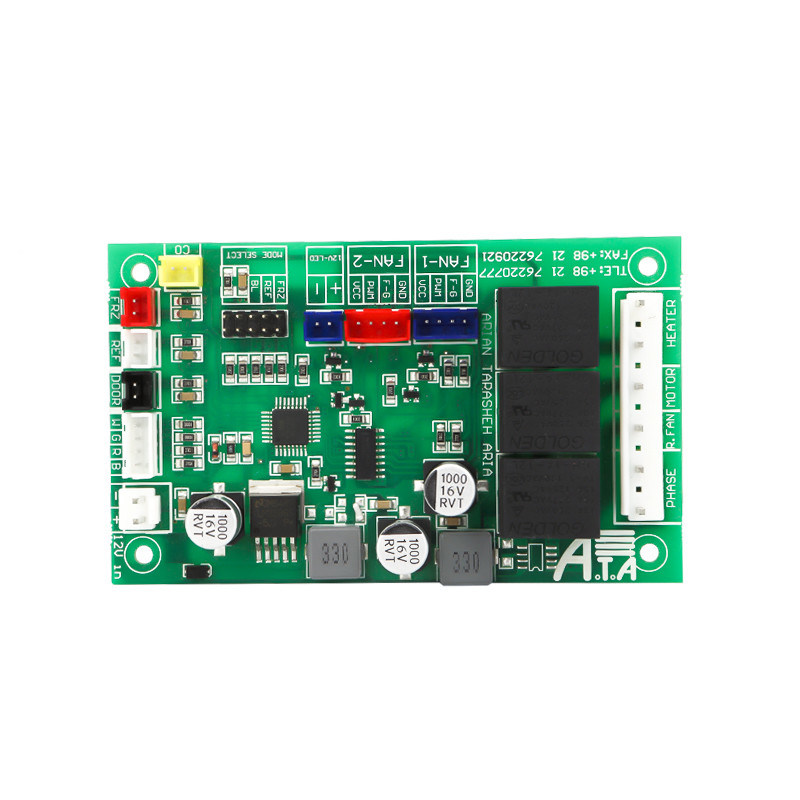

0.8mm Pcb Assembly Medical Pcba Manufacturer Applied In Medical Service
.
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) |
0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
Delivery Time for PCB
| Layer | Prototype |
Mass Productions (above 30 m2 ) |
|
| Quick Turn | Unual Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
Delivery Time for PCBA
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
FASTPCBA is the high tech pcba factory in shenzhen china more than 20 years, our pcba assembly service feature: middle and small batch quick pcb prototype, turnkey pcb assembly, high quality custom pcba manufacturing, original package components procurements etc.
FASTPCBA believes quality derives from profession, reputation wins the future. From grass-roots employees to senior management all concentrate on precise and high quality pcba solutions to provide better service for customers.
With complete dust free & esd protection smt workshop, FASTPCBA has win trust and support from domestic and abroad customers of automotive, medical, industrial control etc. All pcba products here abide by ISO9001 & ISO13485 & ISO14000 &IATF16949 certificates, reliable
and stable pcb manufacturing and assembly service are assured.
