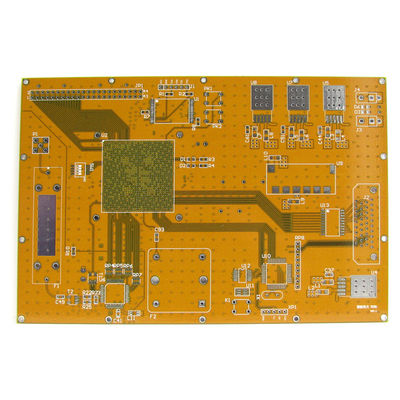

Rigid Flexible 6OZ HASL FR4 HDI PCB Circuit Board

Rigid Flexible 6OZ HASL FR4 HDI PCB Circuit Board

  • Rigid Flexible 6OZ HASL FR4 HDI PCB Circuit Board
  • Rigid Flexible 6OZ HASL FR4 HDI PCB Circuit Board
Rigid Flexible 6OZ HASL FR4 HDI PCB Circuit Board
Product Details:
Place of Origin: China
Brand Name: FASTPCBA
Certification: ISO9001, ISO14001, ISO13485, IATF16949
Model Number: Pcb Manufacturer
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD 0.1-3/ pcs
Packaging Details: 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Service: One-stop PCB And SMT Assembly Layer Count: 1-48
MOQ: No MOQ Surface Finish: HASL,ENIG,immersion Silver,immersion Tin,OSP…
Sub-assembly: Plastic,metal,screen Min Line/space: 0.075/0.075mm
High Light:

FR4 HDI PCB Circuit Board


HASL HDI PCB Circuit Board


6OZ Electronic Board Assembly

Shenzhen Professional Manufacturer Electronic Printing Circuit Board Pcb Maker HDI PCB Circuit Board

HDI Circuit Board

HDI is the abbreviation of High Density Interconnector. It is a (technology) for the production of printed circuit boards. It uses micro-blind and buried via technology for a circuit board with a relatively high line distribution density. HDI is a compact product designed for small-capacity users. It adopts modular design that can be connected in parallel. One module has a capacity of 1000VA (1U height) and is naturally cooled. It can be directly placed in a 19" rack, and up to 6 modules can be connected in parallel. The product adopts full digital signal processing (DSP) technology and multiple Patented technology, with full range of adaptable load capacity and strong short-term overload capacity, regardless of load power factor and crest factor.



PCB Capacities and Technical Specification

1 to 48 layer
FR4, High Tg, Isola, Aluminum, Rogers, etc
PCB type
Rigid, flexible, rigid-flexible
Rectangular, round, slots, cutouts, complex, irregular
Max PCB dimensions
0.2~4.0mm, Flex 0.01~0.25''
Thickness tolerance
± 10%
Copper thickness
0.5-6 oz
Copper thickness tolerance
± 0.25oz
Surface finish
HASL, LF HASL, Imm Gold, Imm Silver, OSP etc
Solder mask
Green, red, white, yellow, blue, black, orange, purple
Silk screen
White, black
Silk screen min line width
0.006'' or 0.15mm
Min drill hole diameter
0.01'', 0.1mm or 10 mil
Min trace/gap
0.075mm or 3mil
PCB cutting
Shear, V-score, tab-routed


PCBA Capabilities

Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype : 15 work days. Mass order : 20~25 work days
Testing on products
Testing jig/mold , X-ray Inspection, AOI Test, Functional test
Min quantity : 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list)
Assembly : Pick-N-Place file
PCB Panel Size
Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm
Components details
Passive Down to 0201 size
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape, Tube, Reels, Loose Parts
PCB+ assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing


Rigid Flexible 6OZ HASL FR4 HDI PCB Circuit Board 0


HDI Circuit Board Application

While electronic design continues to improve the performance of the whole machine, it is also working hard to reduce its size. In small portable products ranging from mobile phones to smart weapons, "small" is an eternal pursuit. High-density integration (HDI) technology can make terminal product designs more compact, while meeting higher standards of electronic performance and efficiency.

HDI is widely used in mobile phones, digital (camcorder) cameras, MP3, MP4, notebook computers, automotive electronics and other digital products, among which mobile phones are the most widely used. HDI boards are generally manufactured by the build-up method. The more build-up times, the higher the technical grade of the board. Ordinary HDI boards are basically one-time build-up. High-end HDI uses two-time or more build-up technology. At the same time, advanced PCB technologies such as stacking holes, electroplating and filling holes, and laser direct drilling are used. High-end HDI boards are mainly used in 3G mobile phones, advanced digital cameras, IC carrier boards, etc.
