| Place of Origin: | China |
| Brand Name: | FASTPCBA |
| Certification: | ISO13485, IATF16949, ISO9001,IOS14001 |
| Model Number: | Prototype PCB Assembly |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable (Depends on your gerber and bom) |
| Packaging Details: | PCB: Vacuum Packing / PCBA: ESD Packing |
| Delivery Time: | 1-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000pcs/month |
| Name: | PCB Prototype Assembly / Fast Pcb Assembly | Laminate Materials: | FR4, High TG FR4, High Frequency, Alum, FPC |
|---|---|---|---|
| PCB Layers: | 1-48 | Min.thickness: | 0.003”(0.07mm) |
| Copper Weight: | 0.5-3 0z | Drilling Size: | Min 0.0078”(0.2mm) |
| Sub-assembly: | Plastic,metal,screen | Min Line/Space: | 0.075/0.075mm |
| High Light: | 0.07mm Prototype Pcb Fabrication,0.07mm Quick Turn pcb assembly,0.07mm fast pcb assembly |
||

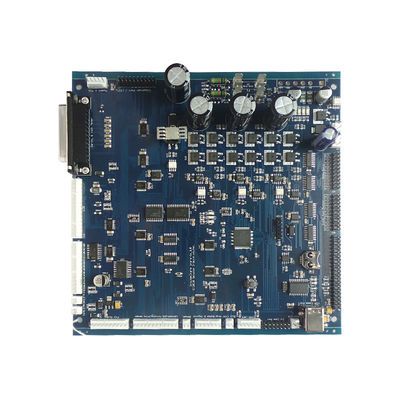

Single Double Layer Quick Turn 0.07mm Prototype Pcb Fabrication
Pcb Single Double Layer Fabrication Quick Turn Pcb Prototype Assembly
In business since 2004, FASTPCBA mainly provides pcb fabrication and assembly service for customers from all over the world. It has ISO and UL certificate, and honored as HI-TECH enterprise by Shenzhen goverment.
As a professional PCB PCBA factory, we can provide prototype and low-to-mid volume PCB fabrication and pcb assembly services for our customers. We are in Shenzhen,China, which is the largest center of technology and electronics manufacturing in the world. Cooperating with our engineering team, quality team, these allow us to offer our customers high quality, One-stop PCB Services.
Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB....
PCB and PCBA Capability
|
Article |
Description |
Capability |
|
Material |
Laminate materials |
FR4, High TG FR4, High Frequency, Alum, FPC... |
|
Board Cutting |
Number of layers |
1-48 |
|
Min.thickness for inner layers |
0.003”(0.07mm) |
|
|
Board Thickness |
Standard |
(0.1-4mm±10%) |
|
Min. |
Single/Double:0.008±0.004” |
|
|
4layer:0.01±0.008” |
||
|
8layer:0.01±0.008” |
||
|
Bow and twist |
no more than 7/1000 |
|
|
Copper Weight |
Outer Cu weight |
0.5-4 0z |
|
Inner Cu weight |
0.5-3 0z |
|
|
Drilling |
Min size |
0.0078”(0.2mm) |
|
Drill deviation |
±0.002″(0.05mm) |
|
|
PTH hole tolerance |
±0.002″(0.005mm) |
|
|
NPTH hole tolerance |
±0.002″(0.005mm) |
|
|
Solder Mask |
Color |
Green,white,black,red,blue… |
|
Min solder mask clearanace |
0.003″(0.07mm) |
|
|
Thickness |
(0.012*0.017mm) |
|
|
Silkscreen |
Color |
white,black,yellow,blue… |
|
Min size |
0.006″(0.15mm) |
|
|
Max Size of Finish Board |
700*460mm |
|
|
Surface Finish |
HASL,ENIG,immersion silver,immersion tin,OSP… |
|
|
PCB Outline |
Square,circle,irregular(with jigs) |
|
|
Package |
QFN,BGA,SSOP,PLCC,LGA |
|
As ISO9001,ISO14001, ISO13485, IATF16949 verified circuit board factory, we will provide DFM Analysis for your every order , as well as low volume and medium volume production runs. We verify all details of your files, including Gerber files, to allow you to correct your PCB design before manufacturing, saving significant time and cost.
We use ERP and MES system, which can protect all your project files and also control all the parts quality from the beginning to the end. As a PCB manufacturer, we have complete and mature tracking system by the two systems, which can solve the problems quickly, also guarantees on-time delivery of quick turn printed circuit board.
Equipment
More than 80% are automated production equipment, improves the production efficiency and product quality.And a variety of famous brand equipment is used in all processes, including Drilling, Electroless Plating, Electroplating, Etching, Solder Mask, Silk Screen, Chemical Gold, Electrolytic Gold, CNC Profiling,Electrical Testing, and Packing.
FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.
We have a global sales team available to assist you with PCB Manufacturing & PCB Assembly services, Send your PCB files to get better price now !
