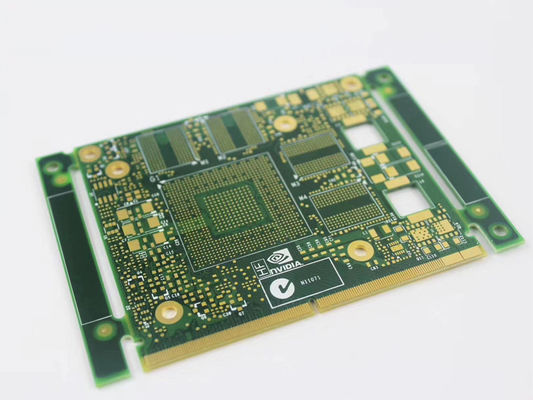

Product Details:
|
| Material: | FR-4 | Color: | Green, Customized Color, Blue On Your Request |
|---|---|---|---|
| Copper Thickness: | 1oz,0.5-2.0 Oz,1-3oz,0.5-5oz,0.5-4oz | Board Thickness: | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0mm |
| Min. Line Width: | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm | Application: | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On |
| High Light: | diy 4 layer pcb,multilayer alumina pcb,ceramic multilayer pcb |
||
Advantages of multilayer circuit boards
1. For the high-frequency circuit, after entering the ground, the signal line has a stable and low characteristic impedance to the ground, and the characteristic impedance of the power circuit is greatly reduced, which has a significant intercepting effect.
2. For electronic products with higher requirements for heat dissipation function, metal core heat dissipation layer can be set up on multi-layer circuit board, which is convenient to satisfy the requirements of shielding, heat dissipation and other special
| Copper Thickness | 1oz~3oz,0.5-5 Oz | Base Material | FR4, Aluminium, TG, Rogers, CEM-1 |
| Board Thickness | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0mm | Min. Line Width | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm |
| Min. Hole Size | 0.25mm, 0.1mm, 0.2 Mm, 0.15-0.2mm, 0.1mm-1mm | Surface Finishing | HASL, OSP, ENIG, HASL Lead Free, Immersion Gold |
| Min. Line Spacing | 0.003", 4mil, 0.2mm, 0.15mm, 0.1mm4mil) | Product Name | Printed Circuit Board, 94V0 PCB Design / PCB Manufacturing |
| Application | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On | Solder Mask | Blue, Green. Red. Blue. White. Black.Yellow, Green/black/white/red/blue Etc., |
| Layer | 1~20 Layers, 1-24layers | Rohs | Lead free |
