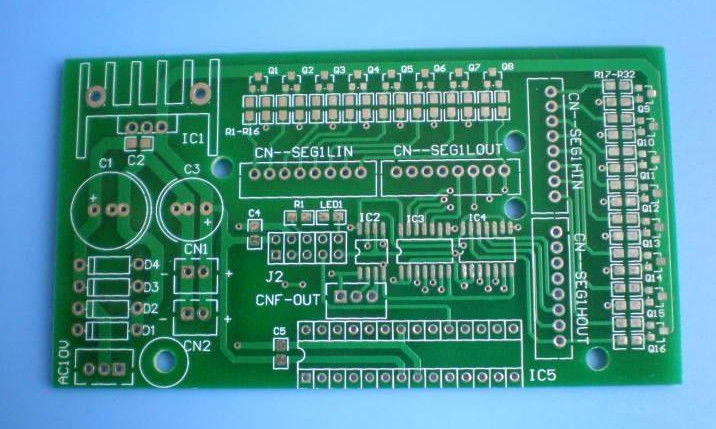

Product Details:
|
| Material: | FR-4 | Color: | Green, Customized Color, Blue On Your Request |
|---|---|---|---|
| Copper Thickness: | 1oz,0.5-2.0 Oz,1-3oz,0.5-5oz,0.5-4oz | Board Thickness: | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0mm |
| Min. Line Width: | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm | Application: | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On |
| High Light: | multi layer board,multilayer aluminium pcb,multilayer pcb materials |
||
Advantages of single layer circuit board
(1) Low cost: The manufacturing cost of single-layer PCB board is relatively low, because only one layer of copper foil and one layer of substrate are needed, and the manufacturing process is relatively simple.
(2) Easy production: Compared with other structural types of PCB board, the production method of single-layer PCB board is relatively simple, only need to carry out single-side wiring and single-layer corrosion, so the production difficulty is low.
(3) High reliability: Single-layer PCB board does not have multi-layer wiring and connection, so it is not easy to short-circuit and interference problems, with high reliability.
(4) Suitable for simple circuit: single-layer PCB board is suitable for simple circuit design, such as LED lights, sound, etc., can meet most of the low complexity of the circuit requirements.
| Copper Thickness | 1oz~3oz,0.5-5 Oz | Base Material | FR4, Aluminium, TG, Rogers, CEM-1 |
| Board Thickness | 1.6mm, 0.5~3.2mm, 0.2-3.0mm, 0.3~2.5mm, 2.0mm | Min. Line Width | 3mi, 4mil, 0.1mm, 0.1mm(Flash Gold)/0.15mm(HASL), 0.1 0mm |
| Min. Hole Size | 0.25mm, 0.1mm, 0.2 Mm, 0.15-0.2mm, 0.1mm-1mm | Surface Finishing | HASL, OSP, ENIG, HASL Lead Free, Immersion Gold |
| Min. Line Spacing | 0.003", 4mil, 0.2mm, 0.15mm, 0.1mm4mil) | Product Name | Printed Circuit Board, 94V0 PCB Design / PCB Manufacturing |
| Application | Electronics Device, Consumer Electronics, Electronical Products, Industrial, And So On | Solder Mask | Blue, Green. Red. Blue. White. Black.Yellow, Green/black/white/red/blue Etc., |
| Layer | 1~20 Layers, 1-24layers | Rohs | Lead free |
