IC BAT32G133 Flash MCU One Stop Thermostat Solution

Large Image : IC BAT32G133 Flash MCU One Stop Thermostat Solution

Product Details:

Place of Origin:	China
Brand Name:	Cmsemicon
Certification:	/
Model Number:	CMS80F261x

Payment & Shipping Terms:

Minimum Order Quantity:	5piece
Price:	USD0.01~0.1/PCS
Packaging Details:	Standard packet
Delivery Time:	15 days
Supply Ability:	10K/mon

Contact Now

IC BAT32G133 Flash MCU One Stop Thermostat Solution

Description

Item:	IC	Components:	SMT
Title:	BAT32G133	Package Drawing:	TSSOP20
Frequency:	64MHz	Core:	M0+
High Light:	BAT32G133 Flash MCU , IC Flash MCU , IC One Stop Thermostat Solution

IC/BAT32G133/Flash MCU/Cmsemicon launched a highly integrated/one-stop thermostat solution

The BAT32G133 series MCU is an ultra-low-power, low-pin MCU based on ARM-Cortex M0+ launched by Cmsemicon. The main frequency is 64MHz, the working voltage is 2.0V-5.5V, 32KB Flash, 4KB SRAM, 1.5KB Data Flash, and up to 22 GPIOs. , ADC, PWM, PGA, comparator, UART, SPI, I2C and temperature sensor, support multiple DMA channels.

Features

> ARM Cortex M0+ core

> Up to 64MHz @2.0V-5.5V

> 35uA/MHz @64MHz

> Operating voltage: 2.0V-5.5V

> Operating temperature: -40℃-105℃

> 32KB Flash

> 4KB SRAM

> 1.5KB Data Flash

> Support BOOT function, space can be set 0-4KB

> Up to 22 GPIOs, digital IO can be mapped freely

> Flexible configuration system clock, can be switched freely

> Hardware multiplier module, support 32bit multiplication operation

> 8 16Bit General Timer

> 1 15Bit interval timer (low-power timer)

> 1 WDT

> 1 RTC, supporting perpetual calendar, alarm clock, etc.

> 1 SysTick Timer

> Enhanced DMA controller

> Linkage controller

> A/D Conversion-up to 18 channels of high-precision high-speed 12Bit ADC@1.2Msps

> 2-channel programmable gain booster, 4/8/10/12/14/16/32 times gain optional

> 2-channel comparator, input source optional reference voltage

> 3 UARTs

> 6 SPIs

> 1 standard I2C

> 1 IrDA channel

> Support ultra-low power consumption mode 0.45uA @deep sleep mode 0.70uA @deep sleep mode+32.768KHz+RTC

> compliant IEC/UL 60730 related standards

> Abnormal storage space access error,hardware CRC check, special SFR protection to prevent misoperation

> 128-bit unique ID number

> Package: QFN24/SSOP24/QFN20/TSSOP20

title	Package Drawing	主频frequency(MHz)	内核/Core	工作温度 /temperature(℃)	电压 (V)	Memory Type	ROM	RAM	Data Flash
CMS80F2619	LQFP32	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F261A	LQFP44	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F261B	LQFP48	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS8S3660	SSOP16	24	8051	-40~105	2.1~5.5	FLASH	8KB	256B+0.5KB	1KB
CMS8S3680	SSOP16	48	8051	-40~105	2.1~5.5	FLASH	8KB	256B+0.5KB	1KB
CMS8S6980	SSOP20	48	8051	-40~105	2.1~5.5	FLASH	8KB	256B+0.5KB	1KB
CMS8S6990NA	QFN20	48	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS8S6990N	TSSOP20	48	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS8S6990	QFN24	48	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS79F111	SOP8	16	RISC	-40~85	1.8~5.5	FLASH	2K×16	256B	/
CMS79F112	SOP14	16	RISC	-40~85	1.8~5.5	FLASH	2K×16	256B	/
CMS79F113	SOP16	16	RISC	-40~85	1.8~5.5	FLASH	2K×16	256B	/
CMS79F116	SOP20	16	RISC	-40~85	1.8~5.5	FLASH	2K×16	256B	/
CMS79F123	SOP16	16	RISC	-40~85	1.8~5.5	FLASH	4K×16	344B	/

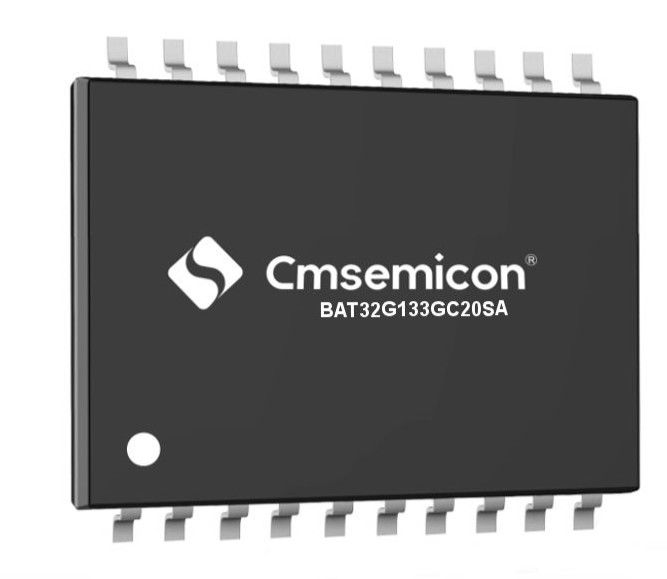

BAT32G133GC20SA	TSSOP20	64	M0+	-40~105	2~5.5	FLASH	32KB	4KB	1.5KB

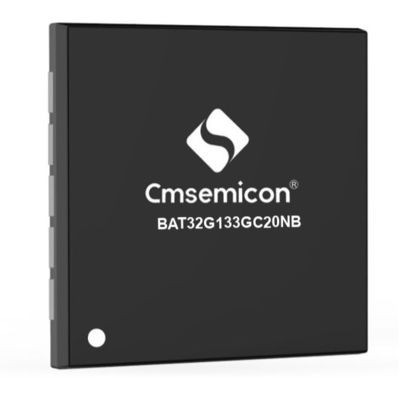

BAT32G133GC20NB	QFN20	64	M0+	-40~105	2~5.5	FLASH	32KB	4KB	1.5KB

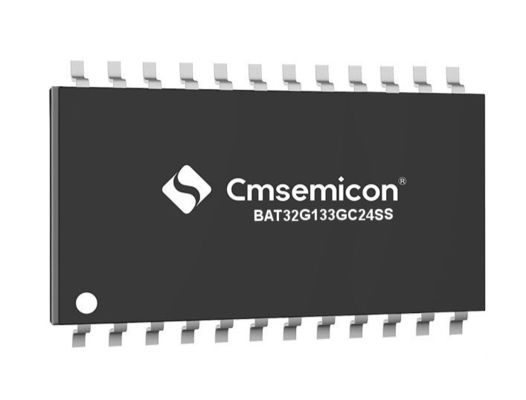

BAT32G133GC24SS	SSOP24	64	M0+	-40~105	2~5.5	FLASH	32KB	4KB	1.5KB
BAT32G133GC24NA	QFN24	64	M0+	-40~105	2~5.5	FLASH	32KB	4KB	1.5KB
BAT32G135GE32FP	LQFP32	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
BAT32G135GE40NB	QFN40	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
BAT32G135GE48FA	LQFP48	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
BAT32G137GH32FP	LQFP32	48	M0+	-40~105	2~5.5	FLASH	128KB	12KB	1.5KB
BAT32G137GH40NB	QFN40	48	M0+	-40~105	2~5.5	FLASH	128KB	12KB	1.5KB
BAT32G137GH48FA	LQFP48	48	M0+	-40~105	2~5.5	FLASH	128KB	12KB	1.5KB
BAT32G137GH64FB	LQFP64	48	M0+	-40~105	2~5.5	FLASH	128KB	12KB	1.5KB
CMS32F030K6Q6	LQFP32	48	M0	-40~105	1.8~5.5	FLASH	32KB	4KB	/
CMS32F030K6T6	QFN32	48	M0	-40~105	1.8~5.5	FLASH	32KB	4KB	/
CMS32F030Y6P6	TSSOP20	48	M0	-40~105	1.8~5.5	FLASH	32KB	4KB	/
CMS32F033LQ32	LQFP32	64	M0	-40~105	2.1~5.5	FLASH	32KB	8KB	1KB
CMS32F033QN32	QFN32	64	M0	-40~105	2.1~5.5	FLASH	32KB	8KB	1KB
CMS32F033SS24	SSOP24	64	M0	-40~105	2.1~5.5	FLASH	32KB	8KB	1KB
CMS32F035LQ32	LQFP32	64	M0	-40~105	2.1~5.5	FLASH	64KB	8KB	1KB
CMS32F035LQ48	LQFP48	64	M0	-40~105	2.1~5.5	FLASH	64KB	8KB	1KB
CMS79FT611	SOP8	16	RISC	-40~85	2.0~5.5	FLASH	2K×16	256B	/
CMS79FT613	SOP16	16	RISC	-40~85	2.0~5.5	FLASH	2K×16	256B	/
ANT32RV5610	LQFP48	48	RISC		2.1~5.5	Flash	64KB	32KB	1KB
CMS79F623	SOP16	16	RISC	-40~85	1.8~5.5	FLASH	4K×16	344B	/
CMS79F736	SOP20	16	RISC	-40~85	2.0~5.5	FLASH	8K×16	256B+240B	/
CMS79FT616	SOP20	16	RISC	-40~85	2.0~5.5	FLASH	2K×16	256B	/
CMS79F738	SOP28	16	RISC	-40~85	2.0~5.5	FLASH	8K×16	256B+240B	/
CMS79FT736	SOP20	16	RISC	-40~85	2.0~5.5	FLASH	8K×16	256B+240B	/
CMS79FT738	SOP28	16	RISC	-40~85	2.0~5.5	FLASH	8K×16	256B+240B
CMS79FT7381	SOP28	16	RISC	-40~85	2.0~5.5	FLASH	8K×16	256B+240B
SC8F2750	SOP8	16	RISC	-20~75	2.5 - 5.5	FLASH	2K×14	128B	/
SC8F2751	MSOP10	16	RISC	-20~75	2.5 - 5.5	FLASH	2K×14	128B	/
SC8F2752	SOP16	16	RISC	-20~75	2.5 - 5.5	FLASH	2K×14	128B	/
SC8F2850	SOP8	16	RISC	-20~75	2.5 - 5.5	FLASH	2K×14	256B	/
SC8F2852	SOP16	16	RISC	-20~75	2.5 - 5.5	FLASH	2K×14	256B	/
SC8F2892	SOP16	16	RISC	-20~75	2.5 - 5.5	FLASH	4K×14	256B	/
SC8F2790	SOP8	16	RISC	-20~75	2.5 - 5.5	FLASH	4K×14	256B	/
CMS8S5889	QFN32	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
BAT32G157GK48FA	LQFP48	64	M0+	-40~105	1.8~5.5	FLASH	256KB	32KB	2.5KB
BAT32G157GK64FB	LQFP64	64	M0+	-40~105	1.8~5.5	FLASH	256KB	32KB	2.5KB
CMS32L031TS20	TSSOP20	64	M0+	-40~105	2~5.5	FLASH	32KB	4KB	1KB
CMS32L031QN20	QFN20	64	M0+	-40~105	2~5.5	FLASH	32KB	4KB	1KB
CMS80F2538	SOP28	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
CMS80F2539	LQFP32	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
CMS80F7518	SOP28	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
CMS80F7519	LQFP32	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
CMS8S5880	QFN20	24	8051	-40~105	2.1~5.5	FLASH	16KB	256B+0.5KB	1KB
CMS8S5880	QFN20	24	8051	-40~105	2.1~5.5	FLASH	16KB	256B+0.5KB	1KB
CMS8S5885	QFN20	24	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS8S5885	TSSOP20	24	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS8S5887	TSSOP20	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
CMS8S5887	QFN20	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
CMS8S6990	SSOP24	48	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS8S7885	SSOP24	48	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS8S7895	SSOP28	48	8051	-40~105	2.1~5.5	FLASH	16KB	256B+1KB	1KB
CMS89F2235B	SOP16	8	RISC	-40~85	2.5~5.5	Flash	4K×16	344B	/
CMS89F2265B	DIP20	8	RISC	-40~85	2.5~5.5	Flash	4K×16	344B	/
CMS89F2335B	SOP16	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F2365B	SOP20	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F2385B	SOP28	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F2385B1	SOP28	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F23A5B	LQFP32	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F6265B	DIP20	8	RISC	-40~85	2.5~5.5	Flash	4K×16	344B	/
CMS89F6285B	SOP28	8	RISC	-40~85	2.5~5.5	Flash	4K×16	344B	/
CMS89F6385B	SOP28	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F6395B-LQFP44	LQFP44	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS89F6395B-LQFP48	LQFP48	8	RISC	-40~85	2.5~5.5	Flash	8K×16	344B	/
CMS8S5897	QFN20	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	4KB
CMS8S5898	QFN24	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	4KB
CMS8S5899	QFN32	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	4KB
CMS8S5897	TSSOP20	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	4KB
CMS8S5898	SSOP24	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	4KB
CMS8S5899	LQFP32	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	4KB
SC8F2892B	SOP16	16	RISC	-40~85	2.1~5.5	FLASH	4KB	256B	/
SC8F6780	SSOP20	16	RISC	-40~85	2.1~5.5	FLASH	4KB	336B	/
SC8F6790	QFN20	16	RISC	-40~85	2.1~5.5	FLASH	4KB	336B	/
SC8F6790	TSSOP20	16	RISC	-40~85	2.1~5.5	FLASH	4KB	336B	/
CMS32L051TS20	TSSOP20	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
CMS32L051LQ32	LQFP32	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
CMS32L051QN32	QFN32	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
CMS32L051QN40	QFN40	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
CMS32L051LQ48	LQFP48	64	M0+	-40~105	1.8~5.5	FLASH	64KB	8KB	1.5KB
CMS8S5888	QFN24	48	8051	-40~105	2.1~5.5	FLASH	32KB	256B+2KB	1KB
BAT32G139GK48FA	LQFP48	64	M0+	-40~105	1.8 - 5.5	FLASH	256KB	32KB	2.5KB
BAT32G139GK64FB	LQFP64	64	M0+	-40~105	1.8 - 5.5	FLASH	256KB	32KB	2.5KB
BAT32G179GM64FB	LQFP64	64	M0+	-40~105	1.8 - 5.5	FLASH	512KB	64KB	20KB
BAT32G179GM80FA	LQFP80	64	M0+	-40~105	1.8 - 5.5	FLASH	512KB	64KB	20KB
BAT32G179GM100FA	LQFP100	64	M0+	-40~105	1.8 - 5.5	FLASH	512KB	64KB	20KB
CMS32L051QN20	QFN20	64	M0+	-40~105	1.8 - 5.5	FLASH	64KB	8KB	1.5KB
CMS32L051SS24	SSOP24	64	M0+	-40~105	1.8 - 5.5	FLASH	64KB	8KB	1.5KB
CMS32L051QN24	QFN24	64	M0+	-40~105	1.8 - 5.5	FLASH	64KB	8KB	1.5KB
CMS80F2629	LQFP32	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	1KB
CMS80F262A	LQFP44	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	1KB
CMS80F262B	LQFP48	48	8051	-40~105	2.1~5.5	FLASH	64KB	256B+4KB	1KB
CMS80F2618	SOP28	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F26182	SOP28	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F761A	LQFP44	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F761B	LQFP48	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
BAT32G127GH32FP	LQFP32	32	M0+	-40 ~105	1.8~5.5	FLASH	128KB	8KB	2.5KB
BAT32G127GH40NB	QFN40	32	M0+	-40 ~105	1.8~5.5	FLASH	128KB	8KB	2.5KB
BAT32G127GH48FA	LQFP48	32	M0+	-40 ~105	1.8~5.5	FLASH	128KB	8KB	2.5KB
BAT32G127GH64FB	LQFP64	32	M0+	-40 ~105	1.8~5.5	FLASH	128KB	8KB	2.5KB
CMS80F26282	SOP28	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F2313	SOP16	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F2316	SOP20	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F2317	SOP24	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F7316	SOP20	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F7318	SOP28	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F7316	TSSOP20	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F7318	SSOP28	48	8051	-40~105	2.1~5.5	Flash	16KB	256B+1KB	1KB
CMS80F7616	SOP20	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F7618	SOP28	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB
CMS80F7619	LQFP32	48	8051	-40~105	2.1~5.5	Flash	64KB	256B+4KB	1KB

IC BAT32G133 Flash MCU One Stop Thermostat Solution 0

Tag:

Contact Person: Wang

Tel: 18006481509

Other Products

Wifi Module ESP32 Communication Module 4G 5G Module Integrated Circuit Chip

ESP32-D0WD IC CHIP 32Mbits SPI Flash 40MHz Crystal Oscillator Onboard / U.FL / IPEX A

Application: Industrial, Automotive, Medical, etc.

Communication Protocol: 802.11, Bluetooth, Zigbee, etc.

Interface: I2C, SPI, UART, USB, etc.

Lifespan: Years

CMS89FT73x EEPROM IC CHIP 16MHz 8K Flash 256Bytes RAM 320Bytes Touch RAM

Item: IC

Components: SMT

title: CMS89FT736

Package Drawing: SOP20

CMS80F261x Flash MCU One Stop Thermostat Solution IC CHIP 48MHz Frequency

Item: IC

Components: SMT

title: CMS80F261x

Package Drawing: LQFP32

CMS32F030K6Q6 IC CHIP Flash MCU Highly Integrated One Stop Thermostat Solution

Item: IC

Components: SMT

title: CMS32F030**

Package Drawing: LQFP32

IC BAT32G133 Flash MCU One Stop Thermostat Solution

PCB Assembly Service

SMT PCB Assembly

EMS PCB Assembly

Through Hole PCB Assembly

Quick Turn PCB Assembly

AI PCB

PCB Manufacturer

Single Sided PCB

Double Sided PCB

Multilayer PCB

OEM PCB

Integrated Circuit Chip

Aluminum Electrolytic Capacitors

Switching Relay

IC BAT32G133 Flash MCU One Stop Thermostat Solution

IC BAT32G133 Flash MCU One Stop Thermostat Solution

BAT32G133 Flash MCU

IC Flash MCU

IC One Stop Thermostat Solution

48MHz IC CHIP,

32Mbits SPI Flash IC CHIP,

ESP32-D0WD IC CHIP

Wifi Module ESP32 Communication Module 4G 5G Module Integrated Circuit Chip

ESP32-D0WD IC CHIP 32Mbits SPI Flash 40MHz Crystal Oscillator Onboard / U.FL / IPEX A

CMS89FT73x EEPROM IC CHIP 16MHz 8K Flash 256Bytes RAM 320Bytes Touch RAM

CMS80F261x Flash MCU One Stop Thermostat Solution IC CHIP 48MHz Frequency

CMS32F030K6Q6 IC CHIP Flash MCU Highly Integrated One Stop Thermostat Solution

PCB Assembly Service

Low Cost Pcb Assembly Services Suppliers Printed Circuit Board Assembly Pcba Process Smt Oem

Pcb Box Build Assembly Services Production Prototype Pcb Pcba Supplier Technology

Prototype Pcb Assembly Services Box Build Tht Oem Odm Pcba Control Board

SMT PCB Assembly

Through Hole SMT Pcb Assembly Drawing Smt Printed Circuit Board Mounting Components On Pcb

Free SMT PCB Assembly For Your Order Smt Pcba Manufacturing Smt Control Board

Double Sided Smt Assembly Service Surface Mount Circuit Board Smd Pcb Assembly
